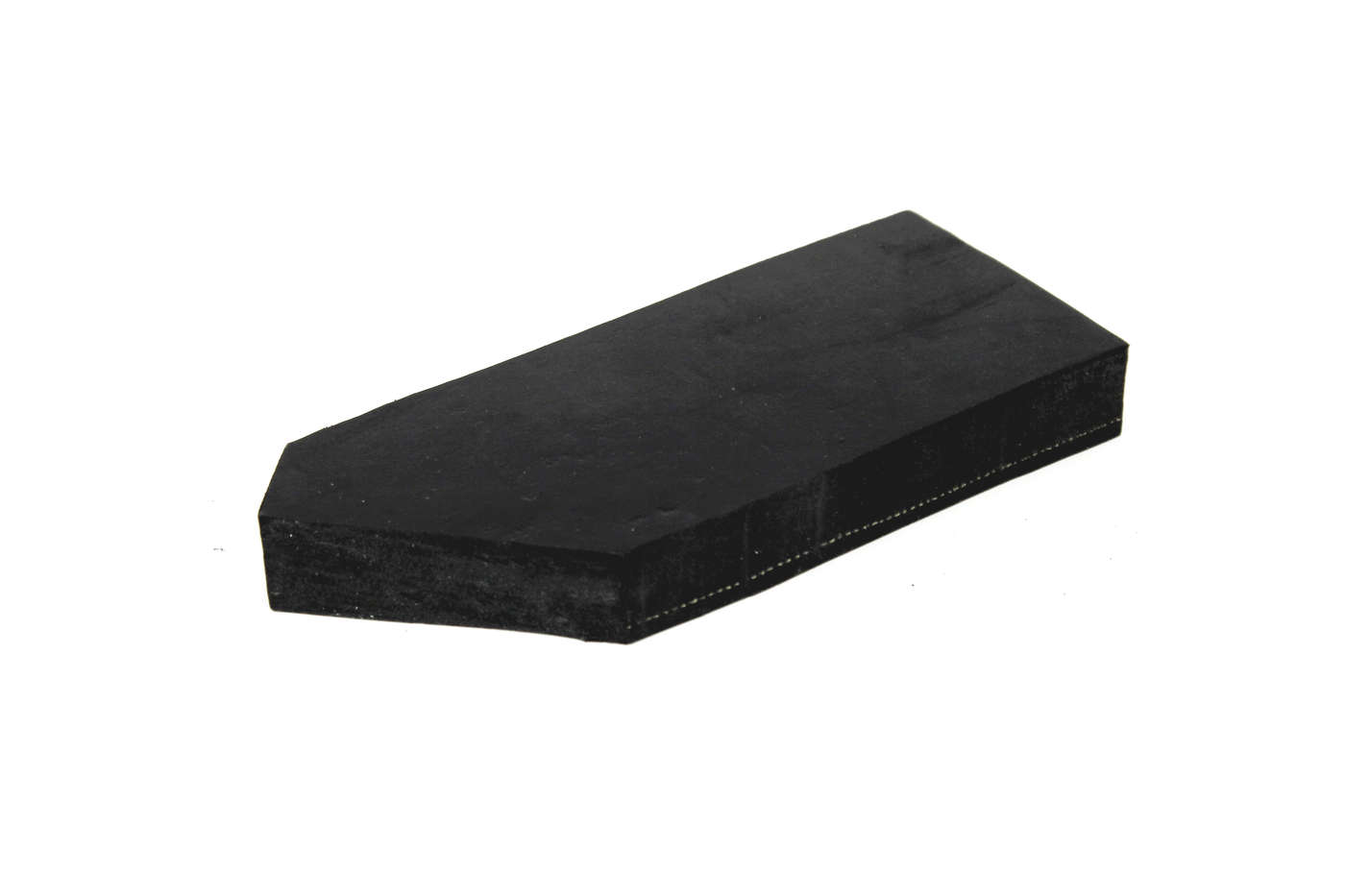

AASHTO Grade Bridge Bearing Pad

Neoprene and Natural sheet rubber that meets AASHTO specifications for highway bridge bearing pads. Note – some states have additional requirements – when ordering, identify all requirements or submit individual state specifications. Custom Shapes and sizes are available on a special-order basis. Excellent load bearing resistance. Usually specified for bridge supports and building construction.

Service Limits



Polymer

Natural Rubber or Neoprene Polychloroprene

ASTM Designation

N/A

Colour

Black

Durometer

50, 60, 70

Temperature Range

-40°F to +170°F

Elongation

300-450

Tensile Strength

2250 PSI

Finish

Smooth

Widths

48"

Thickness

1/8 to 1”

Pressure Sensitive Adhesive (PSA)

Available upon request

Grades

ASTM

Available Forms

Rolls



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
