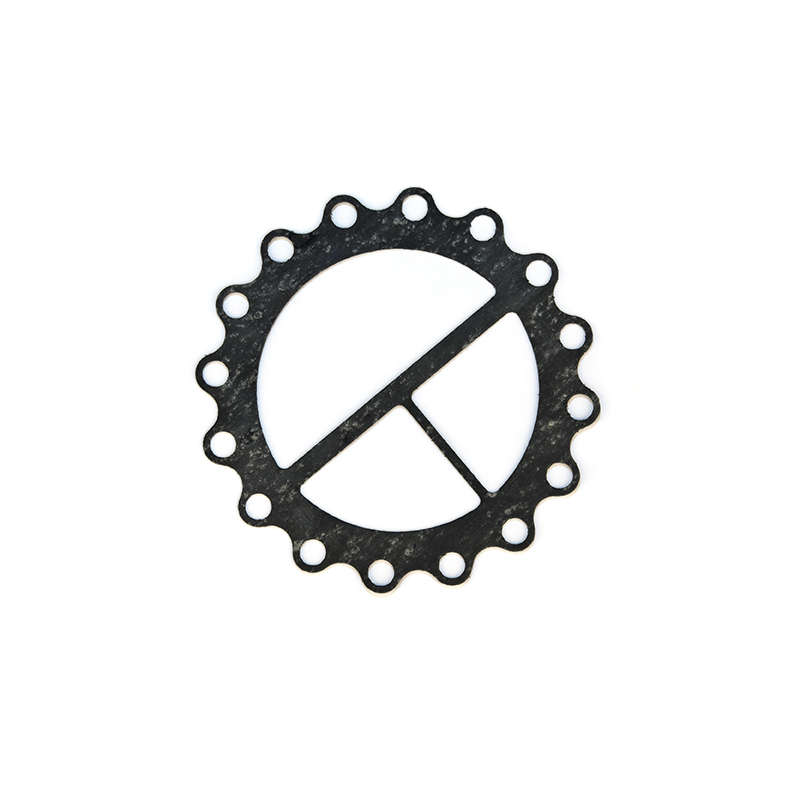

Durlon 8300 Gaskets

Durlon 8300 is made from high strength-carbon and nitrile synthetic rubber. It is great for steam, oil, chemicals, solvents & hydrocarbons. It is most commonly used in petrochemical, power generation and refining industries. Durlon 8300 gasket material is designed to handle the extremes of temperature and pressure.

Check chemical compatibility for Durlon 8300 sheet material or cut gaskets






Service Limits



Fibers

Carbon



Binder

Nitrile (NBR)



Colour

Black



Temperature range

Max: +900°F, Min: -100°F,                 Continuous max: +650°F



Thickness

1/64" to 1/8"



Sizes

60" x 63", 60”  X 126”



Maximum pressure

2000 PSI



Resistant to:

Mild chemicals, steam, oil, hydrocarbons and solvents



Applications

Piping, petrochemical, power generation & refining.





Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.



RELATED CONTENT:






All Custom Gasket ships our Durlon gaskets across Canada and USA.  We take special care to ensure our gaskets are securely packed for safe transit.

For your very large flanges, we can either supply in segmented gaskets or as one piece construction.  We regularly cut Durlon gaskets as large as 120" OD.
