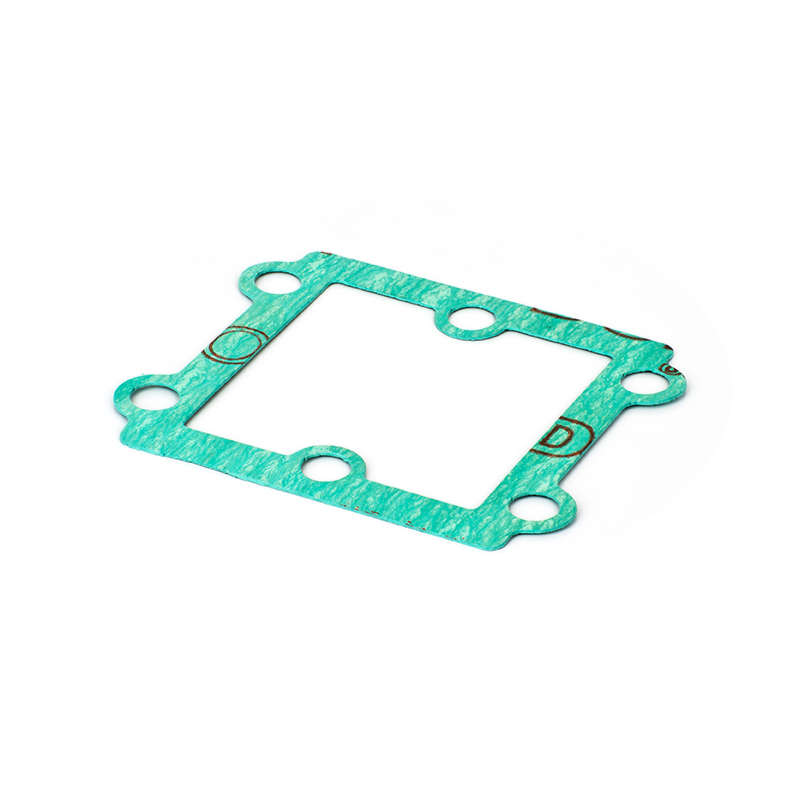

Durlon 8500 Gaskets
Durlon 8500 is excellent a multi-purpose gasket material that is excellent in steam, natural gas, soybean processing, water and oil applications. Great for use in a wide range of services in pulp and paper, food, beverage, pharmaceutical, chemical, refinery, gas pipeline and general industry. Dulon 8500 gasket material has passed the API 6FB Fire Test.
Check chemical compatibility for Durlon 8500 sheet material or cut gaskets
|
Service Limits |
|
|
Fibers |
Aramid/inorganic fibers |
|
Binder |
Nitrile (NBR) |
|
Colour |
Green |
|
Temperature range |
Max: +700°F, Min: -100°F, Continuous max: +548°F |
|
Thickness |
1/64" to 1/8" |
|
Sizes |
60" x 63", 60” X 126” |
|
Maximum pressure |
1500 PSI |
|
Resistant to: |
Saturated Steam, Oils, Fuels, Dilute |
|
Applications |
Excellent in steam, natural gas, soybean process and new generation refrigerants. As well as pulp and paper, food, beverage, pharmaceutical, chemical, refinery, gas pipeline and general industry. |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
RELATED CONTENT:
All Custom Gasket ships our Durlon gaskets across Canada and USA. We take special care to ensure our gaskets are securely packed for safe transit.
For your very large flanges, we can either supply in segmented gaskets or as one piece construction. We regularly cut Durlon gaskets as large as 120" OD.
