EPDM

EPDM rubber is a synthetic rubber made from an Ethylene-Propylene compound. This gasket material offers good resistance to ozone, steam, strong acids and alkali. EPDM rubber material is used for parts in the appliance industry; as low-pressure boilers; weather stripping, boots, dust covers, sleeves and mounts. It is not recommended for use with solvents and aromatic compound.  It has poor resistance to fuels and oils.



Service Limits

Polymer

Ethylene-Propylene-Diene-Monomer

ASTM Designation

EPDM

Colour

Black, White

Durometer

60

Temperature Range

-40°F to +225°F

Elongation

350%

Tensile Strength

890 PSI

Finish

Smooth

Widths

36”, 48”

Thickness

1/16”, 3/32”, 1/8”, 3/16”, 1/4", 3/8”, 1/2"

Pressure Sensitive Adhesive (PSA)

Available upon request

Grades

Commercial, FDA, Peroxide Cured,

NSF-61

Available Forms

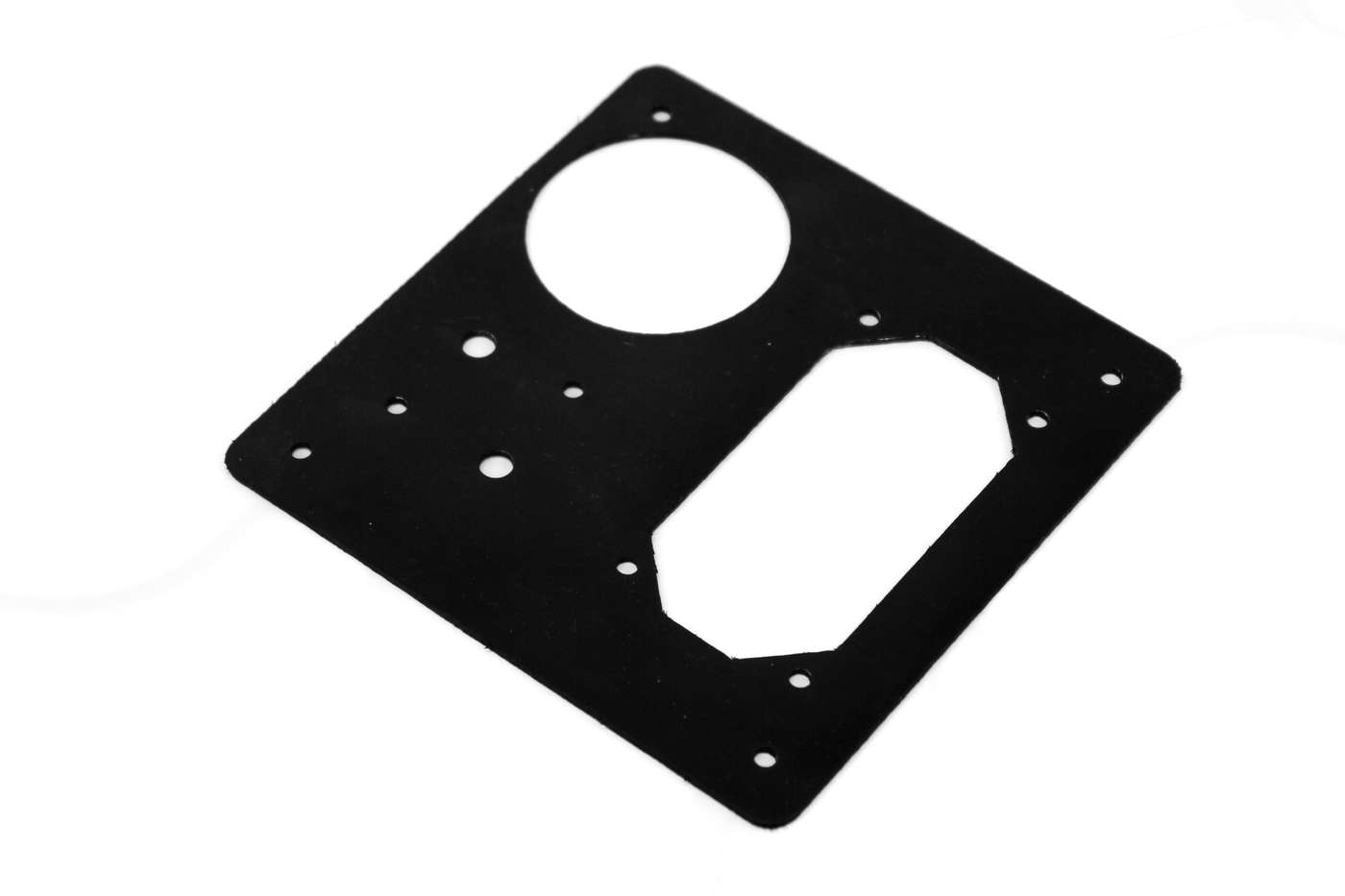

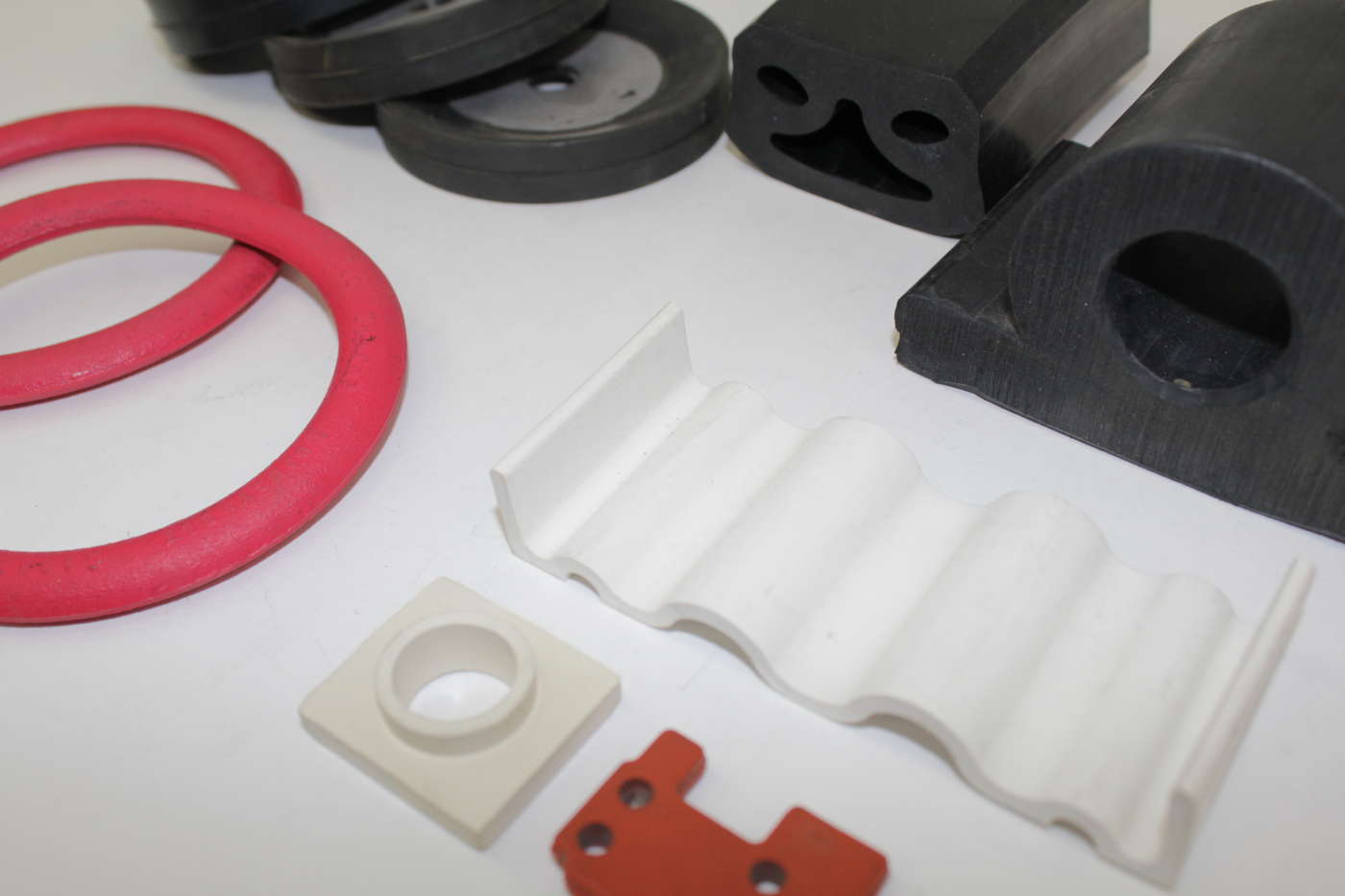

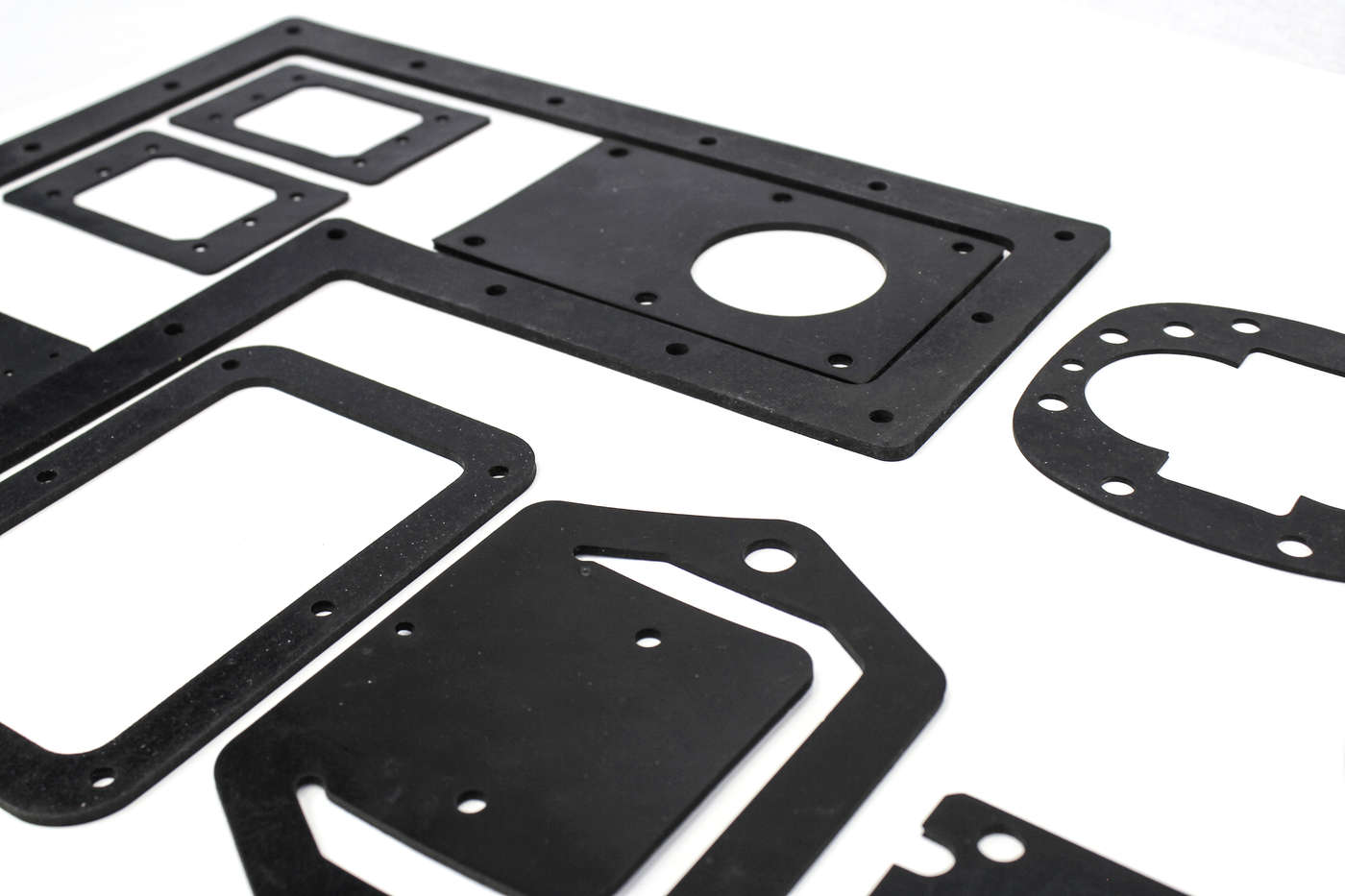

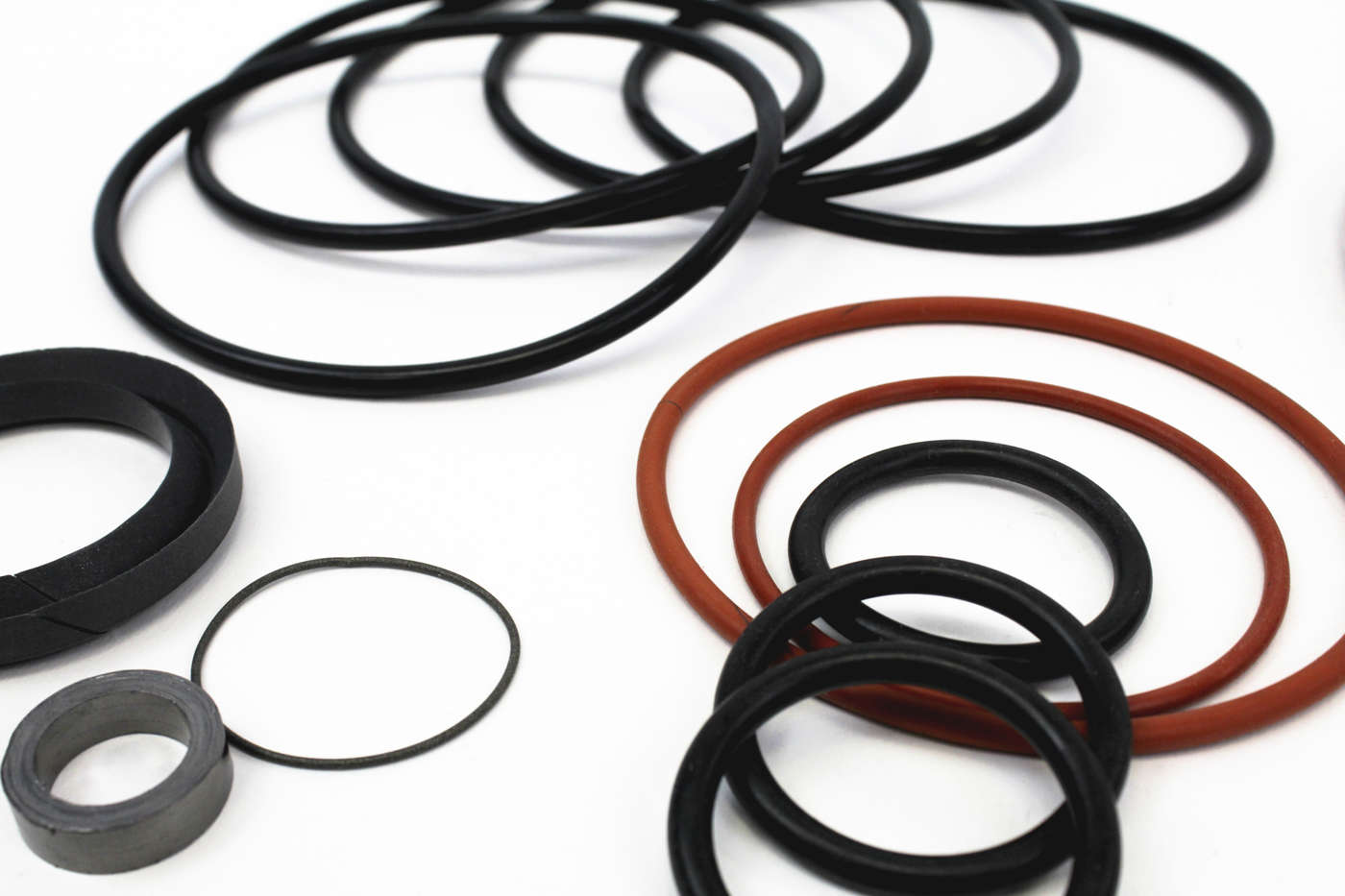

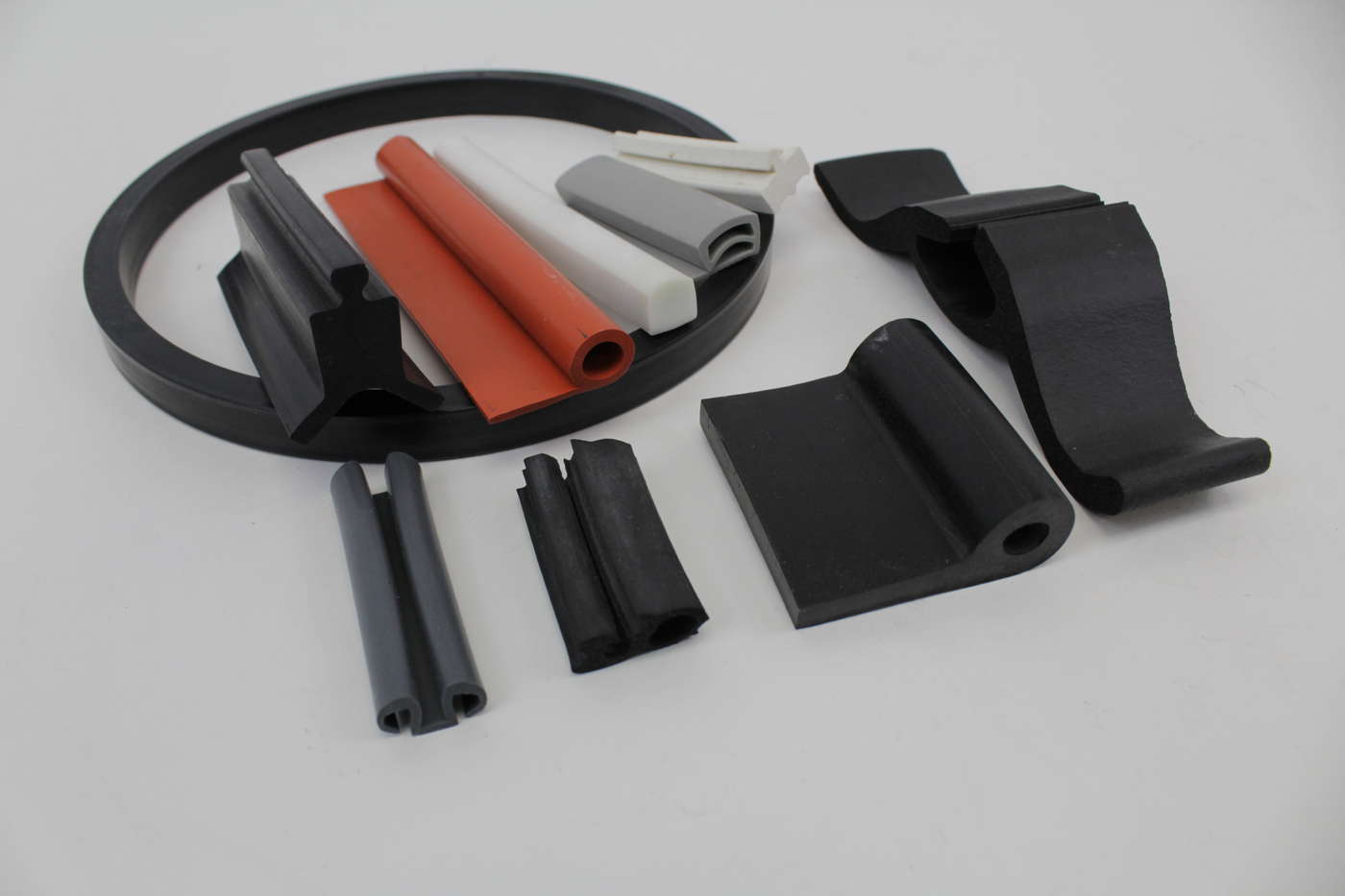

Rolls, Sheet, Stripping, Cut Gasket, Extrusion, Molded parts



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
