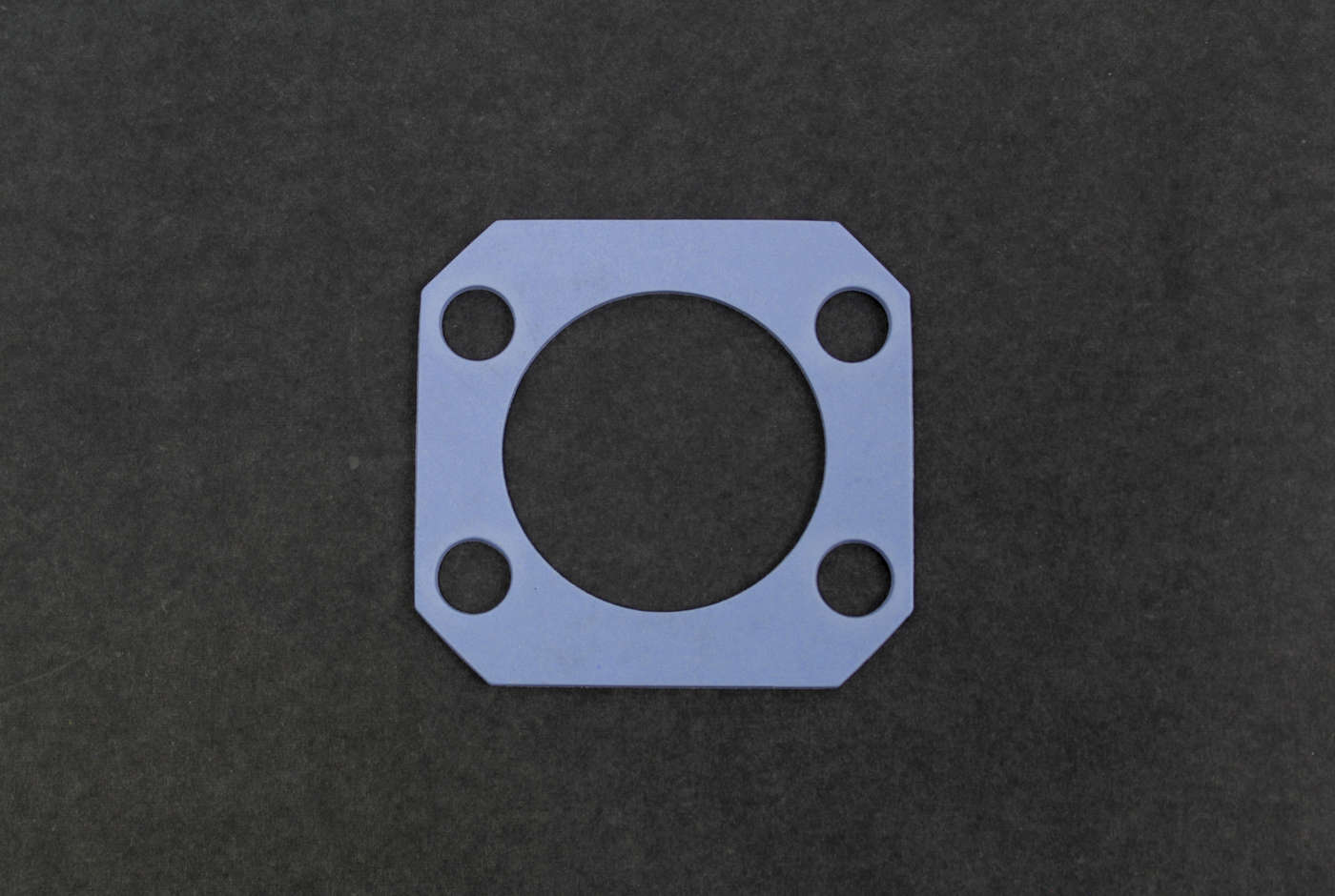

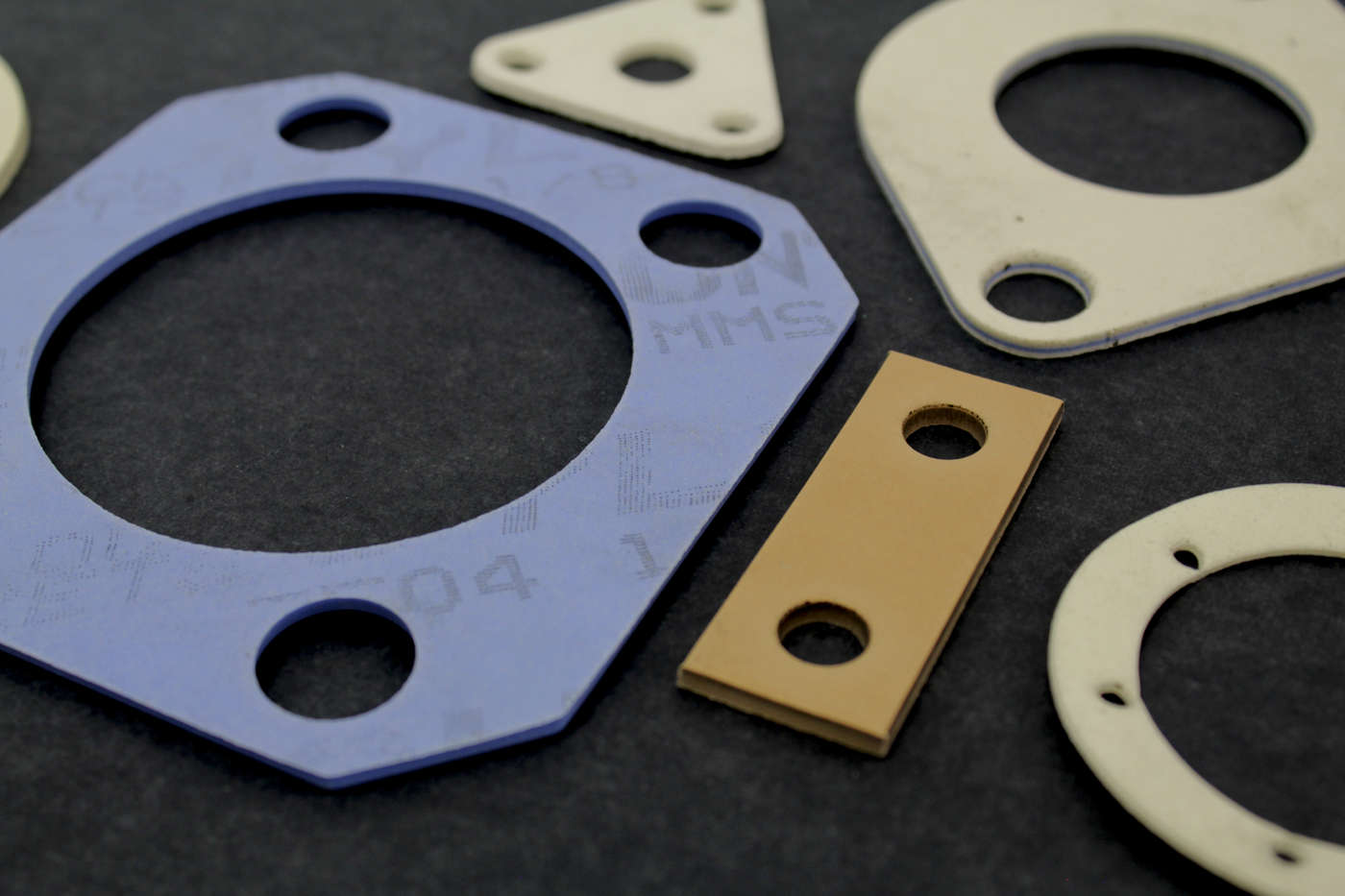

Gylon 3504
Gylon 3504 is great for moderate acids, hydrocarbons, cryogenics, caustics & refrigerants. Minimized cold-flow & great bolt torque retention. Conforms to FDA standards and available for oxygen service (Gylon 3505) & Gylon EPIX ™ Style.
|
Service Limits |
|
|
Filler |
Aluminosilicate microspheres |
|
Colour |
Blue |
|
Temperature range |
-450°F to 500°F |
|
Thickness |
1/16", 1/8" |
|
Sizes |
60" x 60" |
|
Maximum pressure |
800 PSI |
|
Resistant to: |
Moderate concentrations of acids and some caustics, hydrocarbons, solvents, water, refrigerants, cryogenics, hydrogen peroxide |
|
Availability: Forms |
Sheet, Cut gaskets, Oxygen cleaned; bagged, labelled & sealed (Gylon 3505) |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
