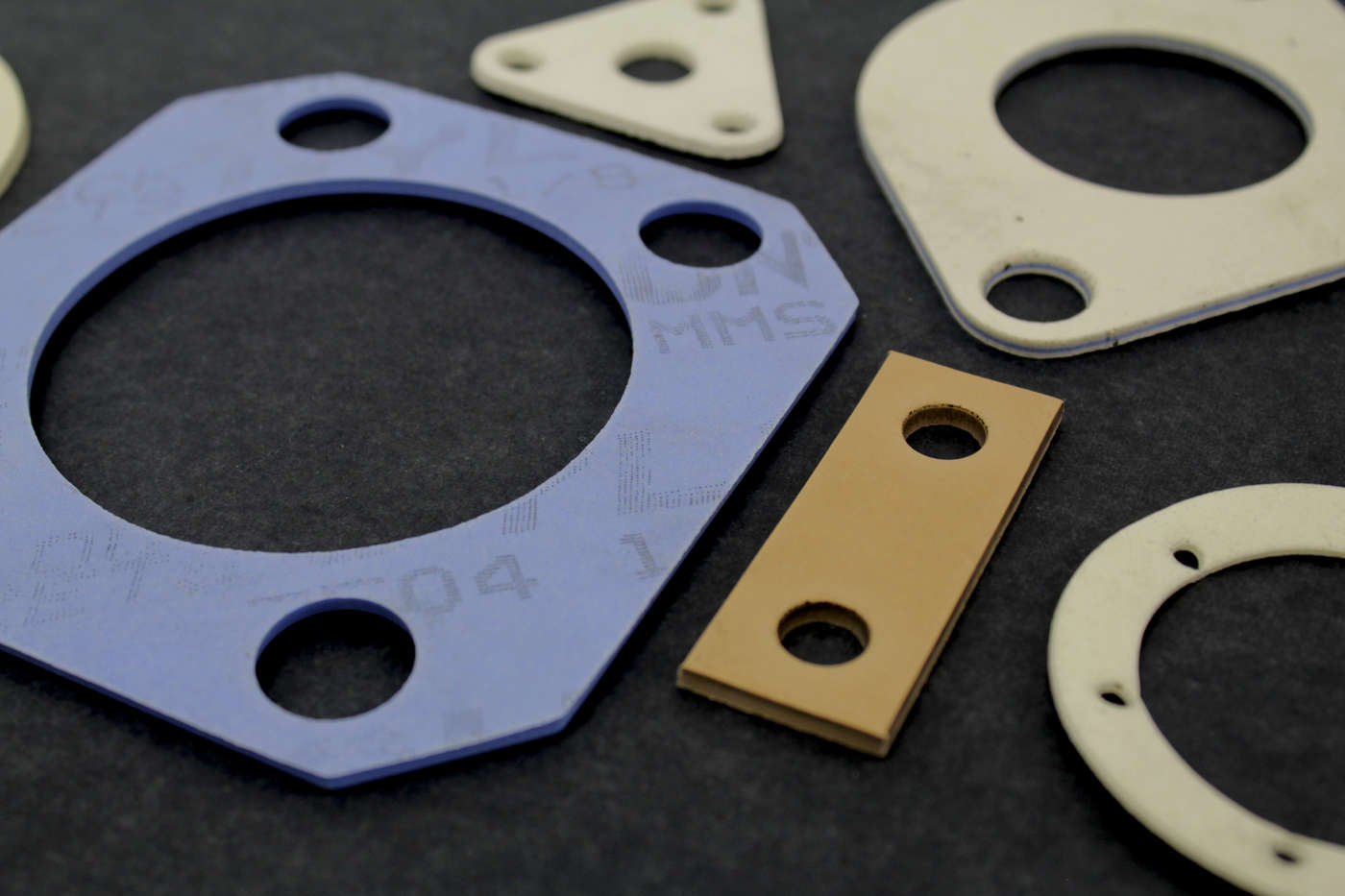

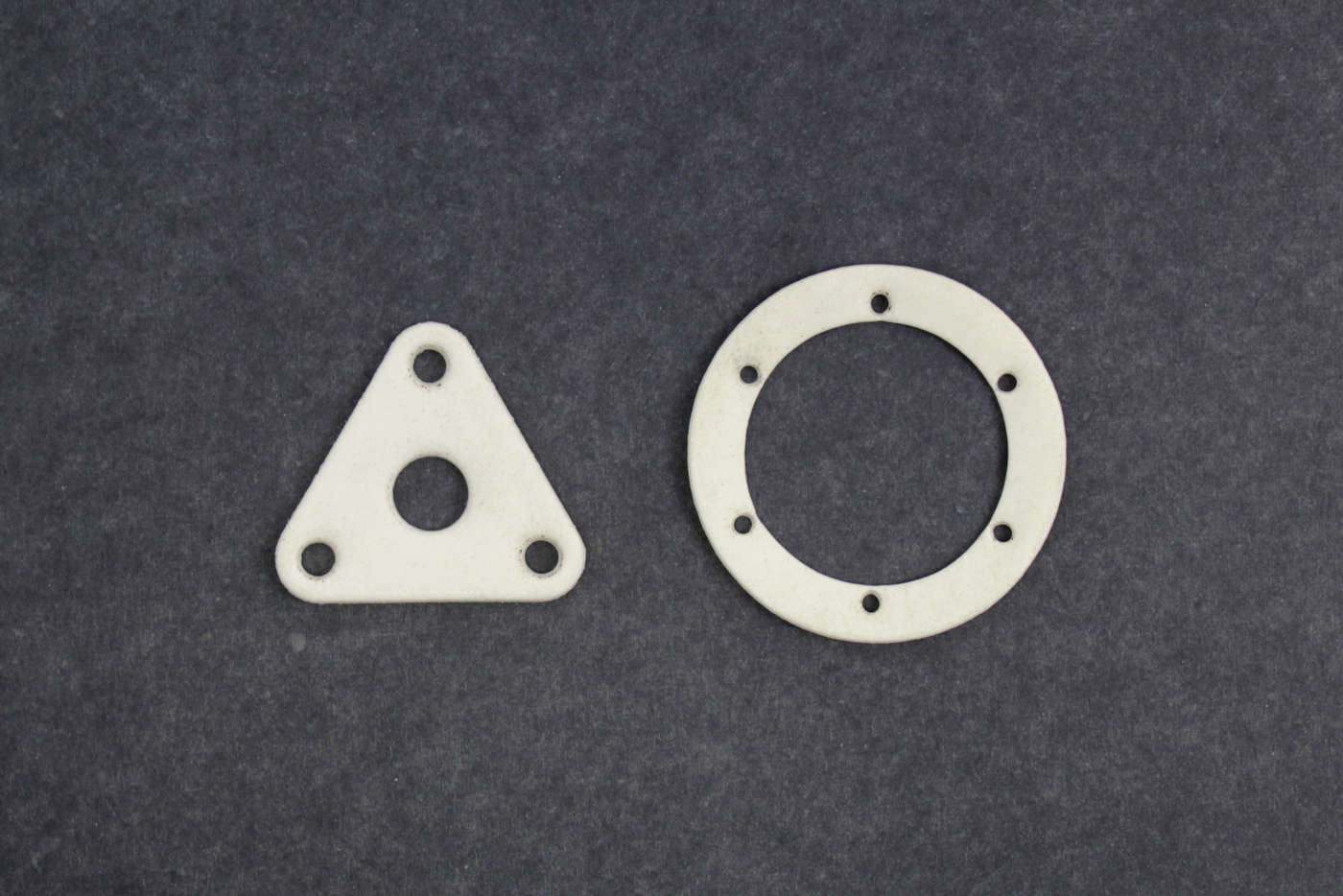

Gylon 3545

Gylon 3545 is highly compressible; suitable for flanges and applications where a rigid gasket is required such as hard to reach piping systems. Conforms to FDA standards.

Service Limits

Filler

Microcellular PTFE & Rigid PTFE core

Colour

White

Temperature range

-450°F to 500°F

Thickness

1/16", 1/8"

Sizes

60" x 60"

Maximum pressure

1200 PSI

Resistant to:

Strong caustics, strong acids, hydrocarbons, chlorine, cryogenics, glass-lined-equipment, low bolt load applications

Availability: Forms

Sheet, Cut gaskets



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
