Quimflex 24SH

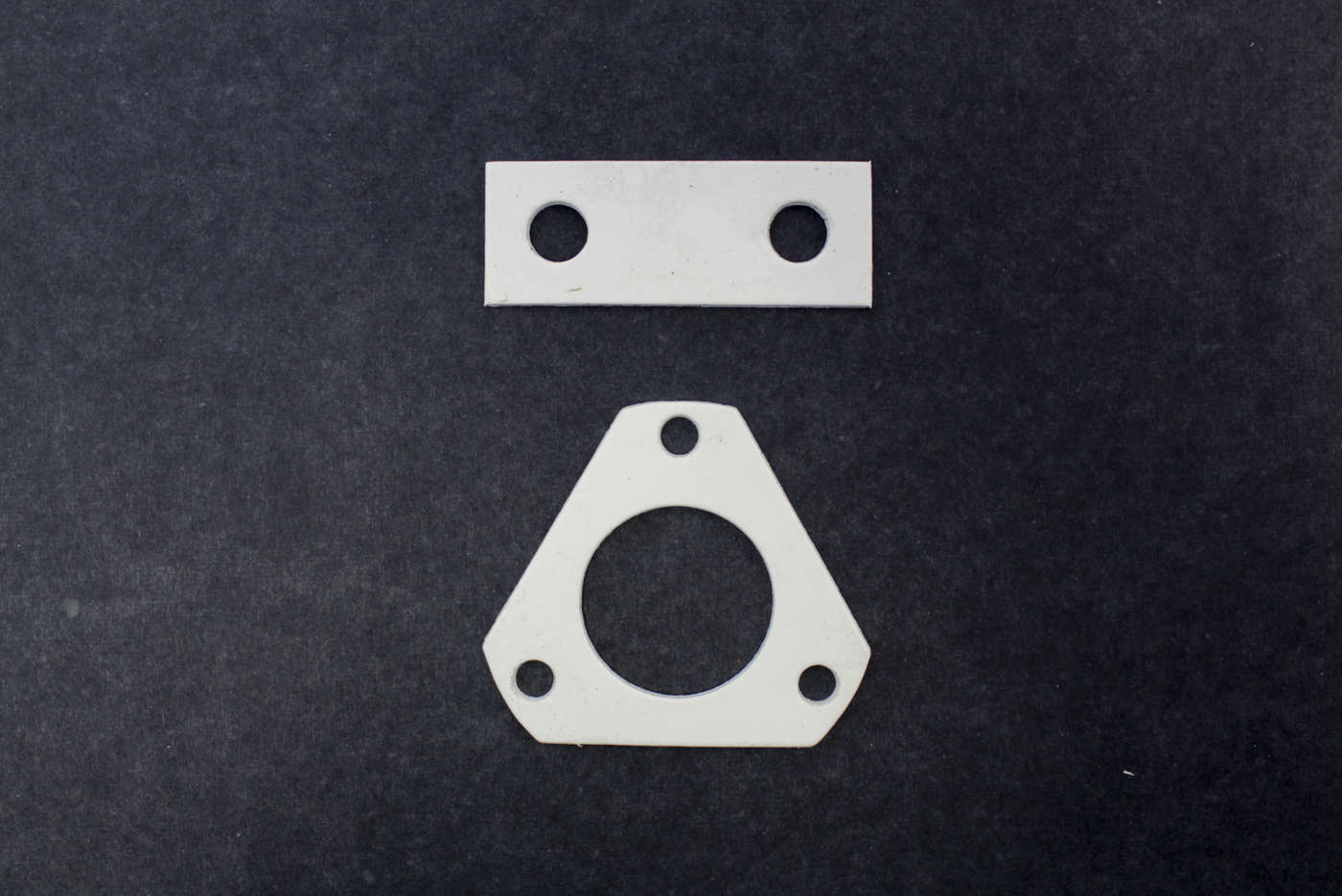

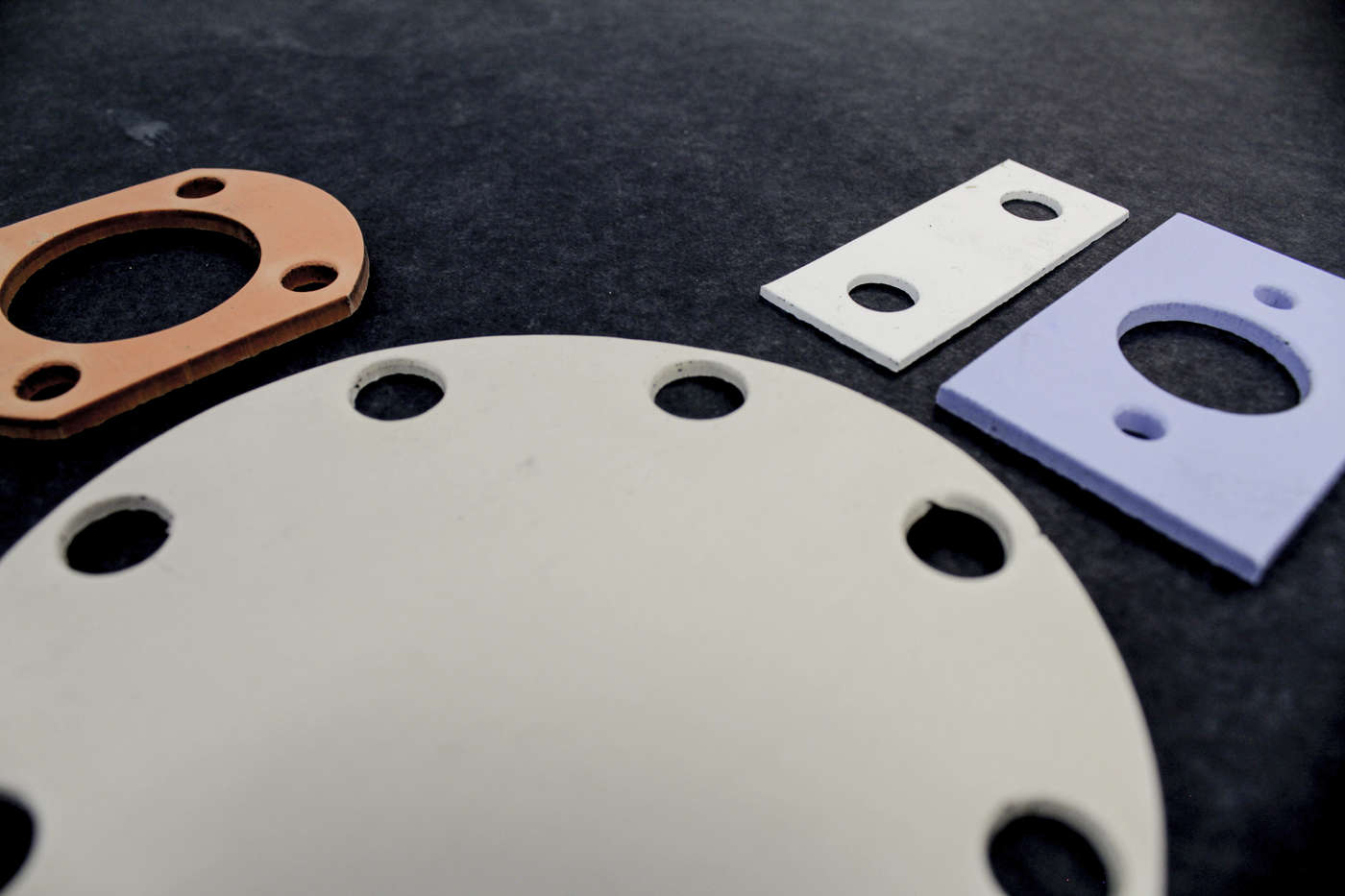

Quimflex 24SH is a large sheet produced from 100% pure PTFE. Suitable for all types of flanges, wide temperature range, and great for jobs with high demand for purity. Has excellent malleability and does not widen when compressed. Conforms to FDA standards.
|
Service Limits |
|
|
Filler |
100% expanded PTFE Sheet |
|
Colour |
White |
|
Temperature range |
-450°F to 600°F |
|
Thickness |
1/16", 1/8", 1/4" |
|
Sizes |
60" x 60" |
|
Maximum pressure |
2900 PSI |
|
Resistant to: |
Aggresive checmical (will not contaminate or discolor end products) |
|
Availability: Forms |
Sheet, Cut gaskets |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
