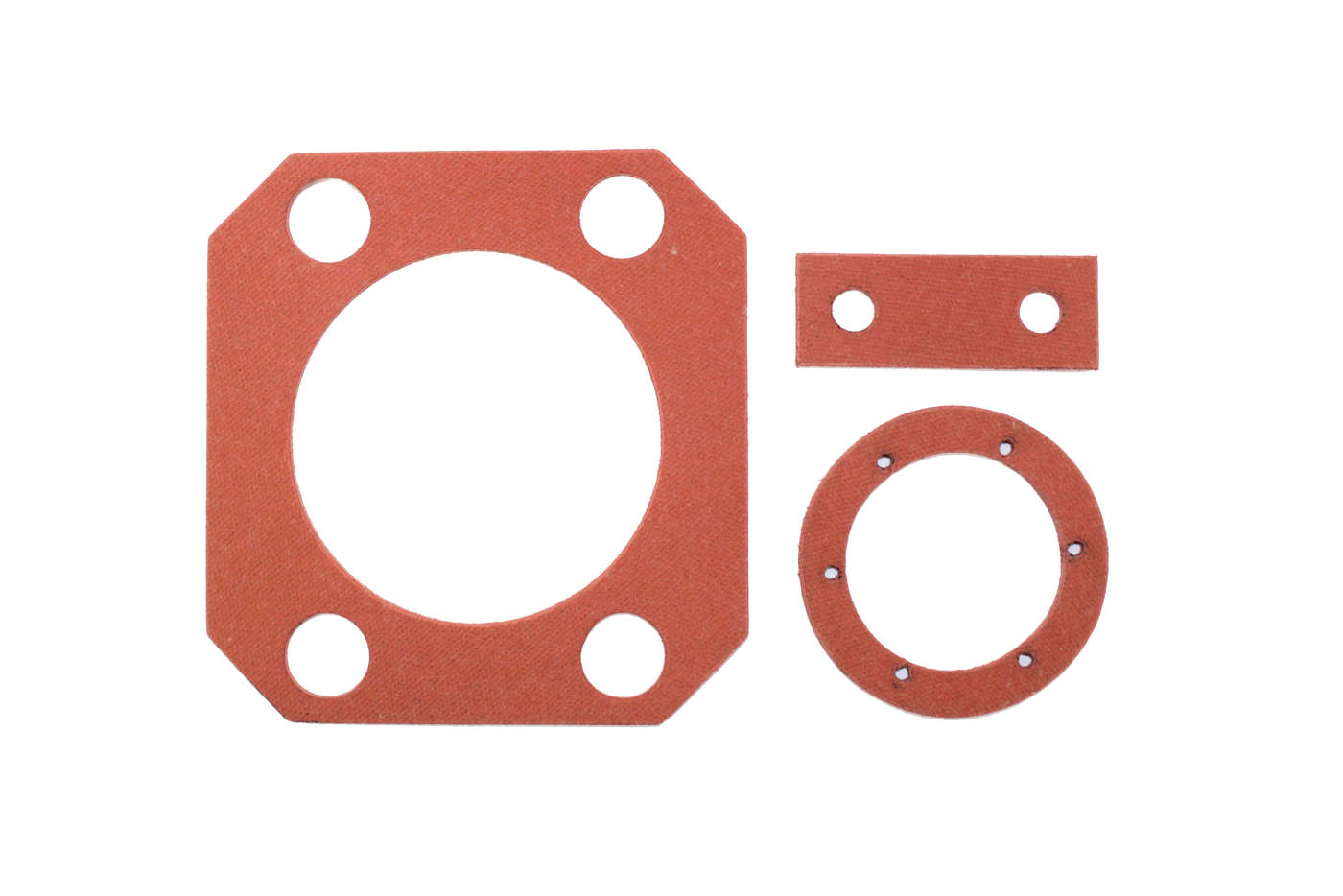

Red Rubber (SBR)

Red Rubber is a commercial blend of Styrene Butadiene for industrial gaskets. It has good physical properties making it an economical gasket material. Conforms easily to uneven flange surfaces, has good abrasion resistance, excellent impact strength, very good resilience and a high tensile strength. Not suited for use with oils, fuels, solvents or hydraulic fluids.

Service Limits

Polymer

Styrene Butadiene

ASTM Designation

SBR

Colour

Red

Durometer

80

Temperature Range

-20°F to +180°F

Elongation

400%

Tensile Strength

500-1200 PSI

Finish

Plate, Fabric

Widths

36", 48"

Thickness

1/16", 3/32", 1/8", 1/4"

Pressure Sensitive Adhesive (PSA)

Available upon request

Grades

Commercial,

Grade D 1330-85 Grade 1 or 2

Available Forms

Rolls, Sheets, Stripping, Cut gaskets, Extrusion, Molded parts



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
