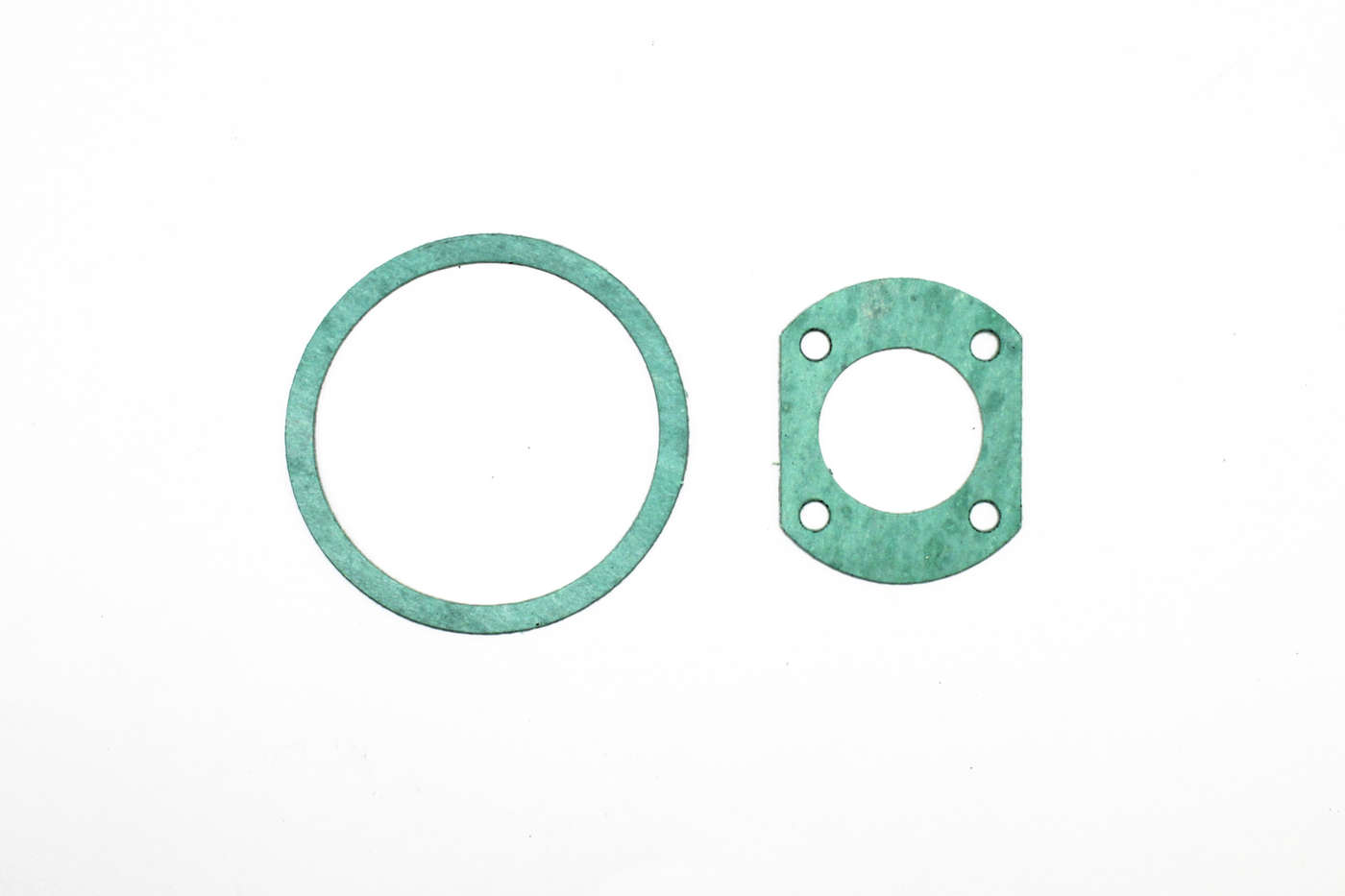

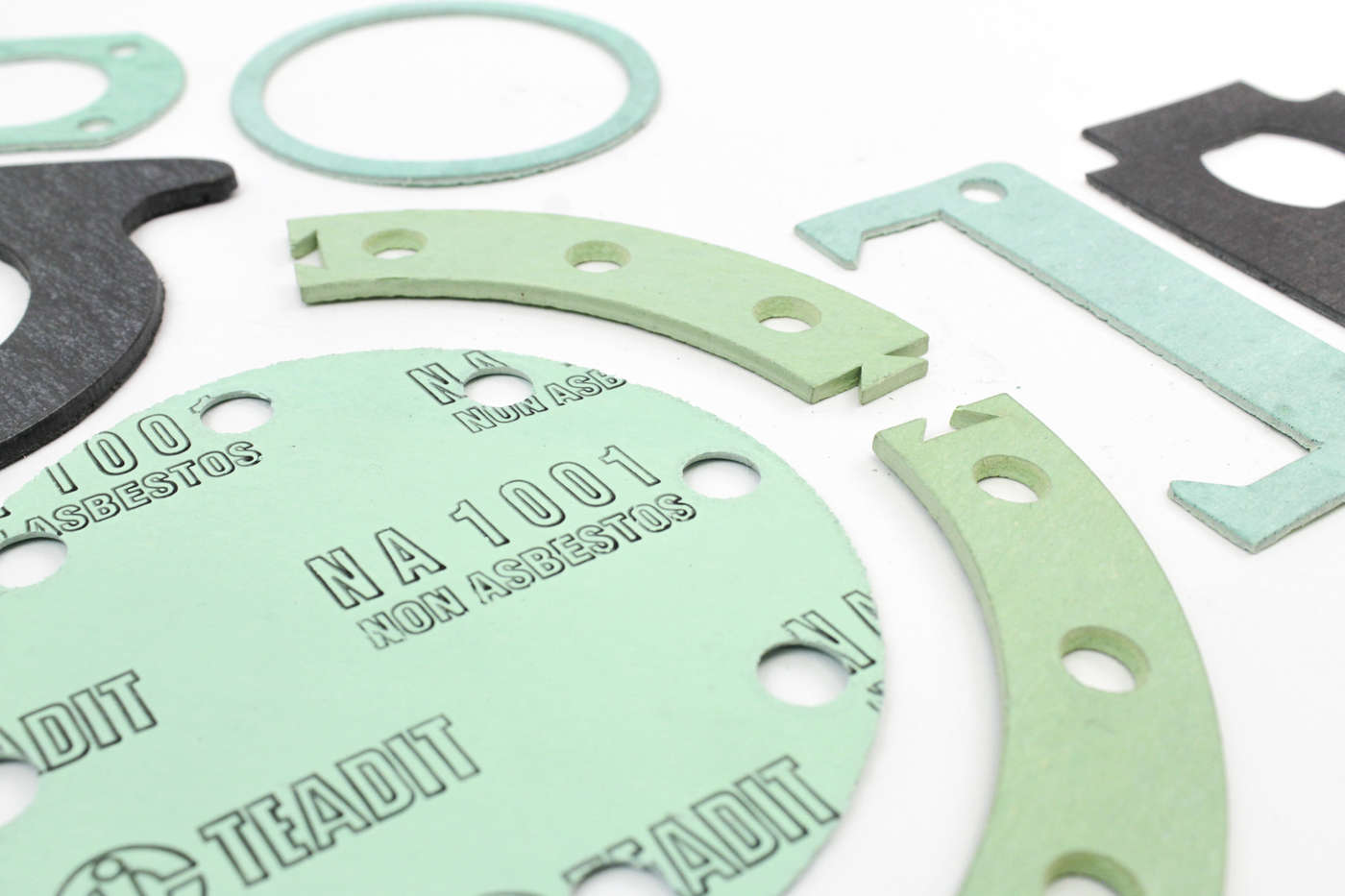

Teadit NA 1001
Teadit NA 1001 is great for general services industry and has numerous applications in the process industry as well as in water and wastewater. This gasket material is also commonly used in valve and pump equipment.
|
Service Limits |
|
|
Fibers |
Combination of synthetic fibers |
|
Binder |
Nitrile (NBR) |
|
Colour |
Green |
|
Temperature range |
Max: +750°F, Continuous max: +460°F |
|
Thickness |
1/64”, 1/32”, 1/16”, 3/32”, 1/8” |
|
Sizes |
59” x 63”, 59” x 126”, 118” x 126” |
|
Maximum pressure |
Max:1595 PSI, Continuous Max: 725 PSI |
|
Resistant to: |
Mild inorganic acids, mild organic acids, refrigerants, diluted alkalis, water, brine, aliphatic solvents, industrial gases, animal oils, synthetic oils, vegetable oils, petroleum and derivatives, general chemicals, neutral solutions, air |
|
Applications |
Process industries, water & waste-water industry, Used in equipment such as valves and pumps. |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
