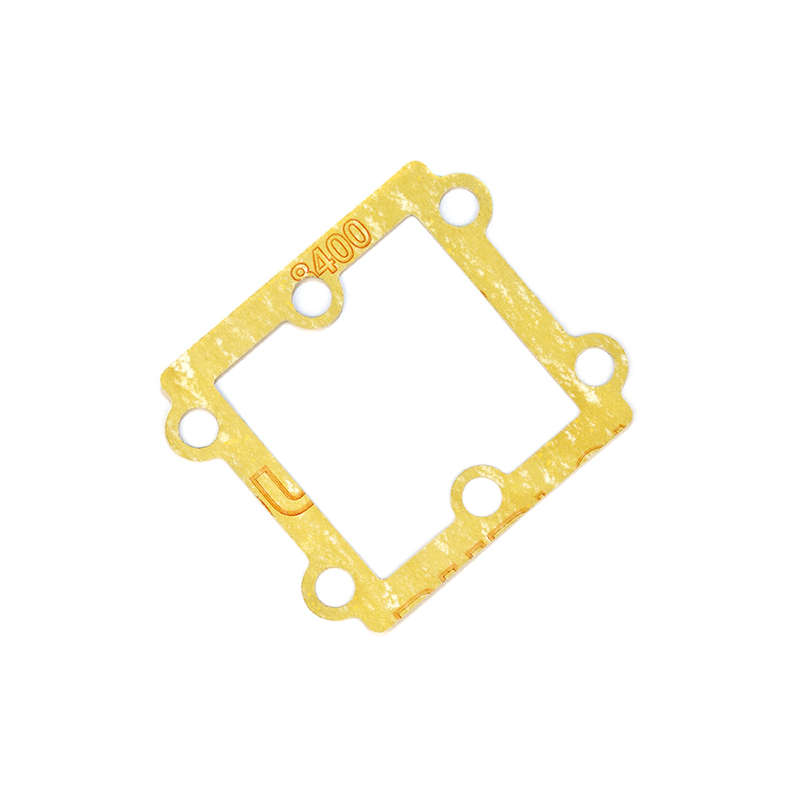

Durlon 8400 Gaskets
Durlon 8400 gasket material has a very wide range of uses. It can be used in process piping and equipment, chemical, pulp and paper, and other general industrial application. It has excellent resistance to steam, mild caustics and acids. It has a wide pH application range.
Check chemical compatibility for Durlon 8400 sheet material or cut gaskets
|
Service Limits |
|
|
Fibers |
Phenolic |
|
Binder |
Nitrile (NBR) |
|
Colour |
Gold |
|
Temperature range |
Max: +800°F, Min: -100°F, Continuous max: +554°F |
|
Thickness |
1/64" to 1/8" |
|
Sizes |
60" x 63", 60” X 126” |
|
Maximum pressure |
1500 PSI |
|
Resistant to: |
Steam, oils, solvents, caustics, fuels, dilute acids & alkalis, hydrocarbons, refrigerants |
|
Applications |
Process piping and pulp & paper industries. Ideal for fluid services, including saturated steam, oils, dilute acids & alkalis, solvents, fuels and refrigerants |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
