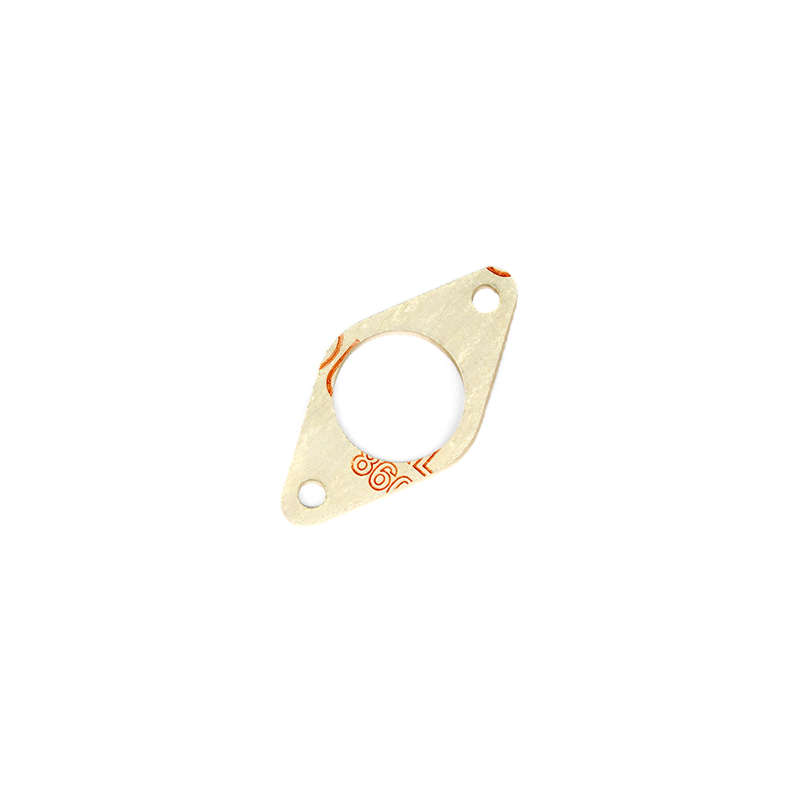

Durlon 8600 Gaskets

Durlon 8600 gasket material exhibits good compressibility and recovery, flexibility and cutting characteristics. For use in a variety of industries including pulp and paper, power, petrochemical and food & beverage.

Check chemical compatibility for Durlon 8600 sheet material or cut gaskets

Service Limits

Fibers

Aramid/inorganic fibers

Binder

SBR rubber

Colour

White

Temperature range

Max: +800°F, Min: -100°F,                 Continuous max: +548°F

Thickness

1/64”, 1/32”, 1/16”, 3/32”, 1/8”, 1/4”

Sizes

120" x 126", 40" x 126", 60" x 126",    60" x 63"

Maximum pressure

1500 PSI

Resistant to:

Saturated steam, water, inert gases, alcohols, dilute acids & alkalis

Applications

Pulp & paper, power, petrochemical, FDA, pharmaceutical and plastic



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.



RELATED CONTENT:






All Custom Gasket ships our Durlon gaskets across Canada and USA.  We take special care to ensure our gaskets are securely packed for safe transit.

For your very large flanges, we can either supply in segmented gaskets or as one piece construction.  We regularly cut Durlon gaskets as large as 120" OD.
