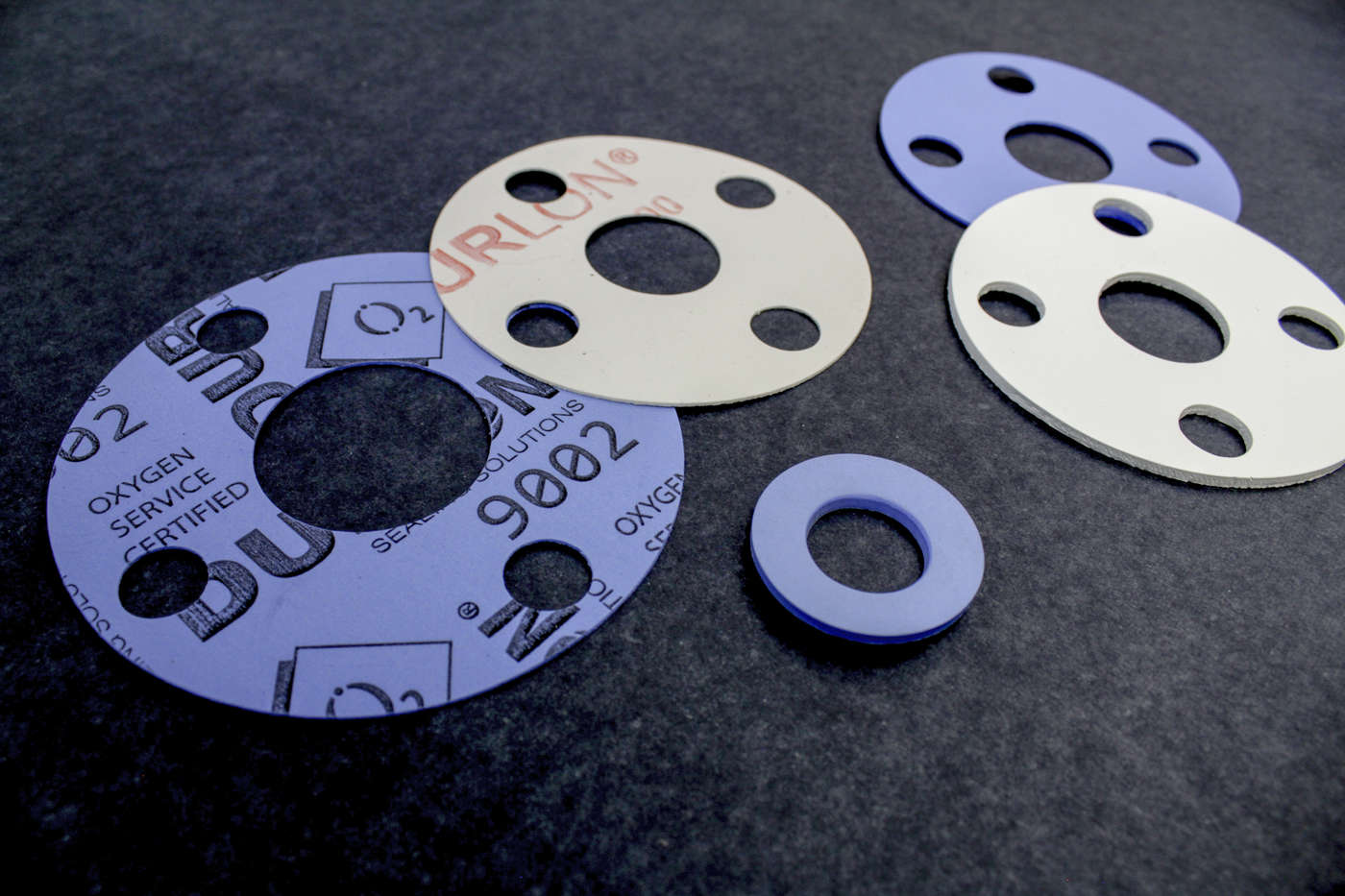

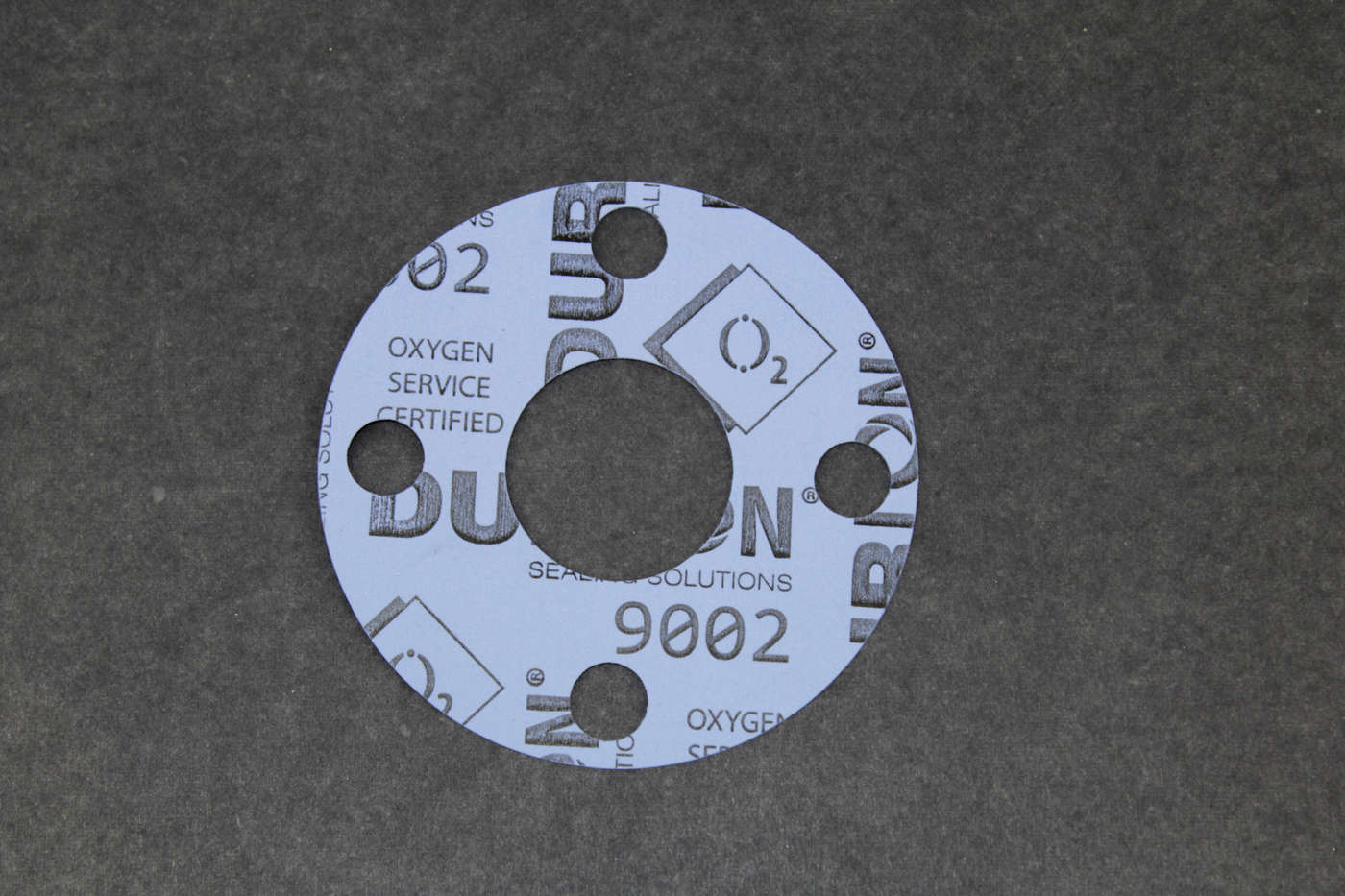

Durlon® 9002

Durlon 9002 is excellent for extreme cryogenic demands. It has passed both gaseous and liquid oxygen tests. This gasket material conforms to FDA standards and parts are traditionally oxygen cleaned, bagged, labelled & sealed according to the European Industrial Gases Association Standard for Cleaning of Equipment for Oxygen Service.

Service Limits

Filler

Inorganic

Colour

Blue

Temperature range

Max: +520°F, Min: -350°F, Continuous max: +500°F

Thickness

1/64", 1/32", 1/16", 3/32", 1/8"

Sizes

60" x 60", 60" x 120" (Custom Size)

Maximum pressure

1500 PSI

Resistant to:

Steam, Oils, Liquid Chlorine, Acids, Caustics, Liquid Oxygen

Available Forms:

Cut Gaskets, Oxygen cleaned; bagged, labelled & sealed, Sheets



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
