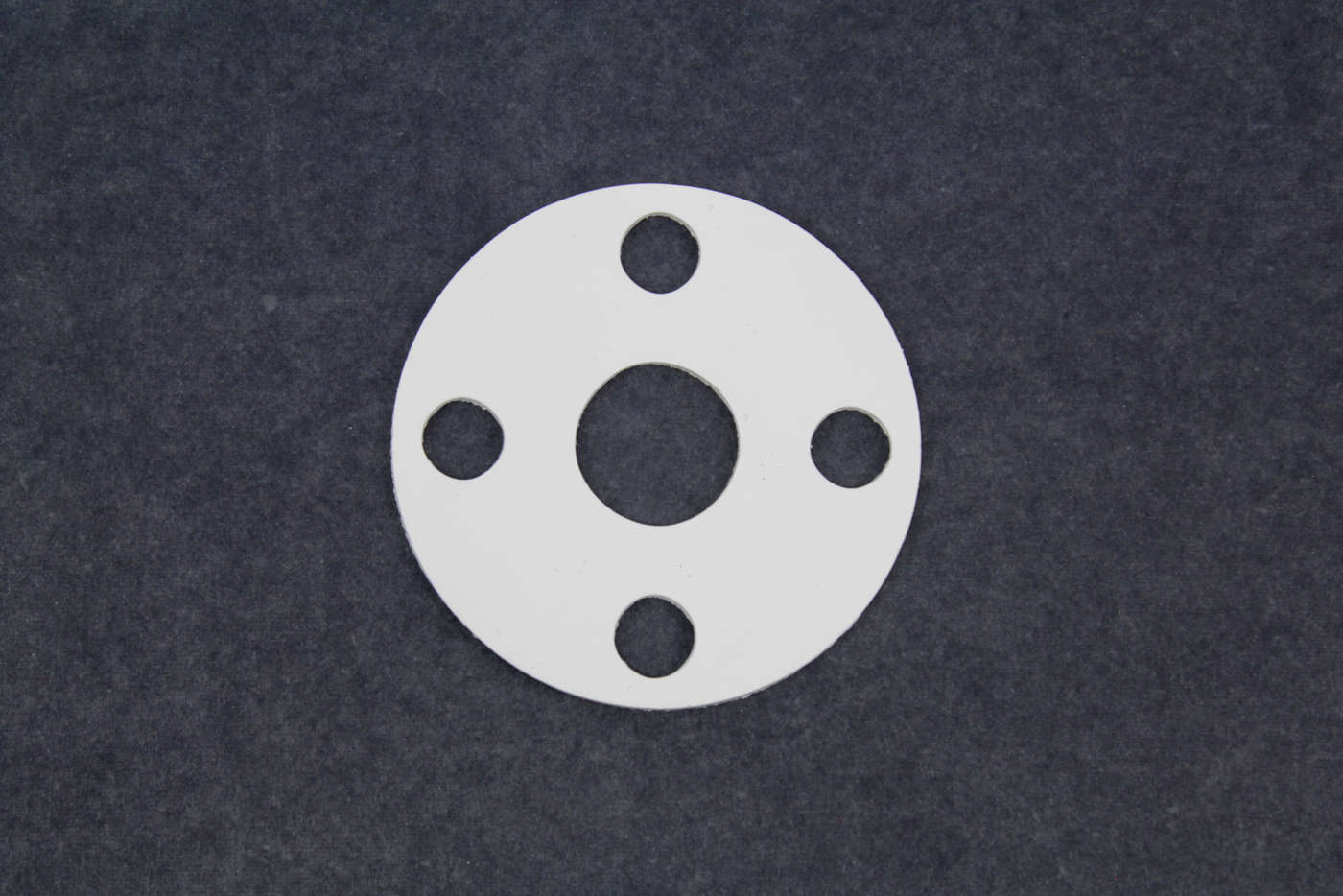

Durlon® 9600

Durlon 9600 is an expanded PTFE gasket material designed to seal at low loads & resist creep and cold flow while being able to withstand high flange & high-pressures. Conforms to irregular flange surfaces. Conforms to FDA standards & uses Premium grade PTFE.

Service Limits

Filler

Pure PTFE (Binder)

Colour

White

Temperature range

Max: +520°F, Min: -350°F, Continuous max: +500°F

Thickness

1/64", 1/16", 1/8"

Sizes

60" x 60"

Maximum pressure

1800 PSI

Resistant to:

Aggressive chemicals

Available Forms:

Sheet, Cut Gaskets



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
