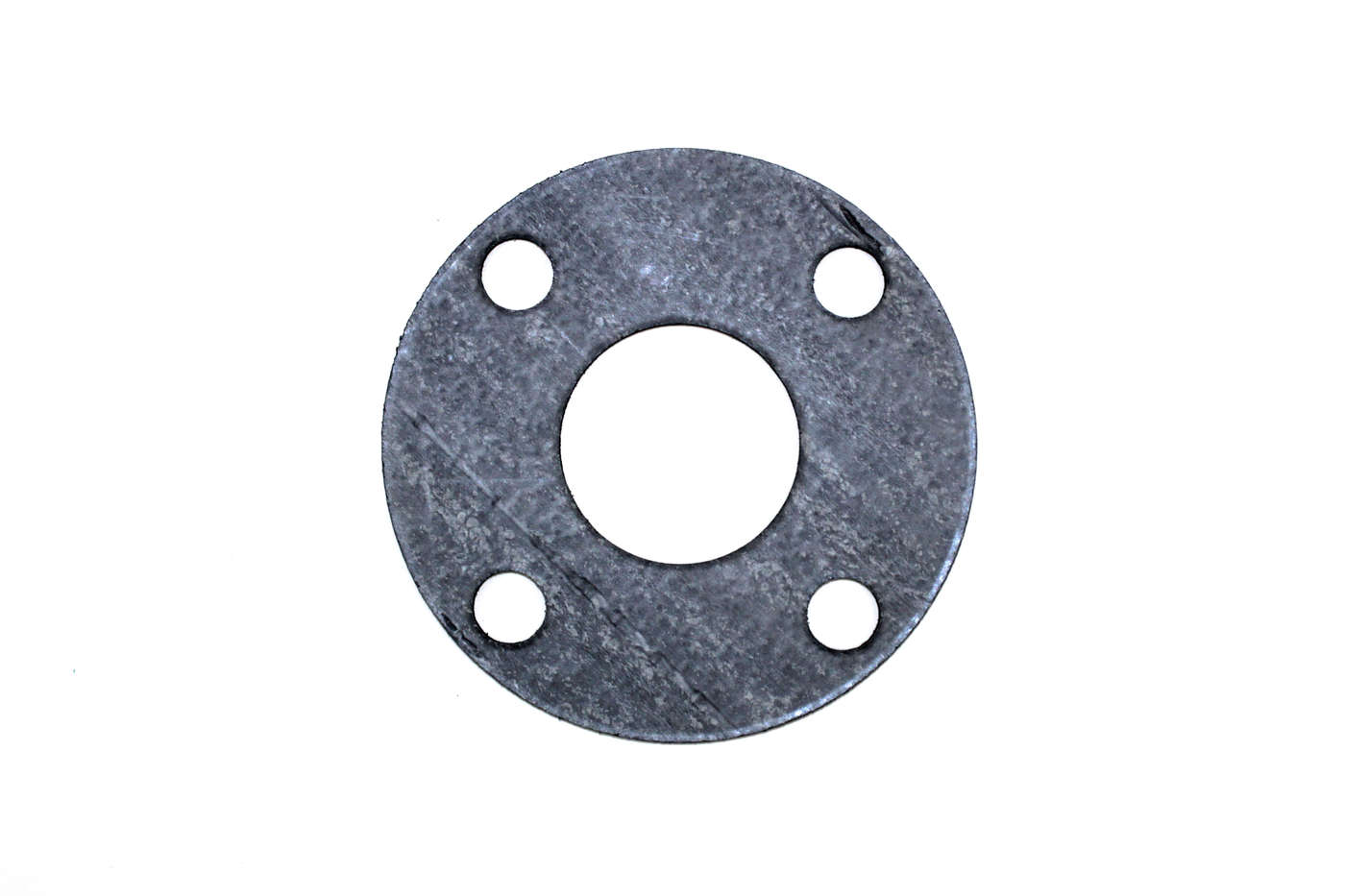

Garlock 9800 Gaskets

Garlock 9800 gasket material has a very high resistance to heat and pressure, used often in piping, chemical and gas services. This gasket material is composed of carbon fibers with an SBR binder.






Service Limits



Fibers

Carbon



Binder

SBR



Colour

Black



Temperature range

Max: +900°F, Min: -100°F,                  Continuous max: +650°F



Thickness

1/64", 1/32", 1/16", 3/32", 1/8"



Sizes

60" x 60", 60" x 120"



Maximum pressure

2000 PSI



Resistant to:

Saturated steam, water, inert gas



Applications

Piping, pumps, petroleum & chemical industries







Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
