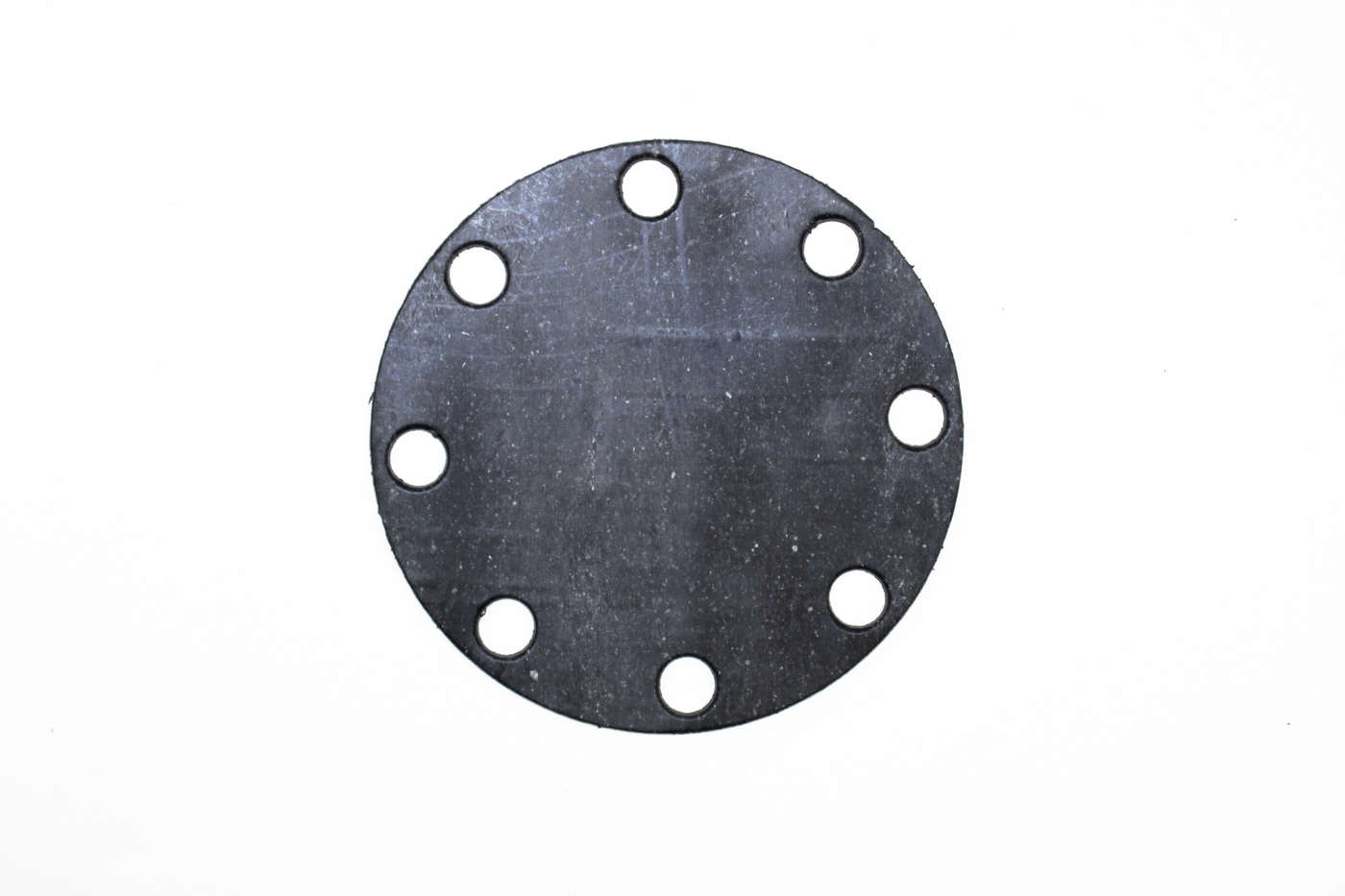

Garlock 9850

Garlock 9850 has a very high resistance to heat and pressure used often in hydrocarbon services & chemical processing. It is a high temperature gasket material composed of carbon fibers with a nitrile binder.






Service Limits



Fibers

Carbon



Binder

Nitrile (NBR)



Colour

Black



Temperature range

Max: +900°F, Min: -100°F,                  Continuous max: +650°F



Thickness

1/64", 1/32", 1/16", 3/32", 1/8"



Sizes

60" x 60" 60" x 120"



Maximum pressure

2000 PSI



Resistant to:

Saturated steam, gas & oils, water, refrigerants & hydrocarbons



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
