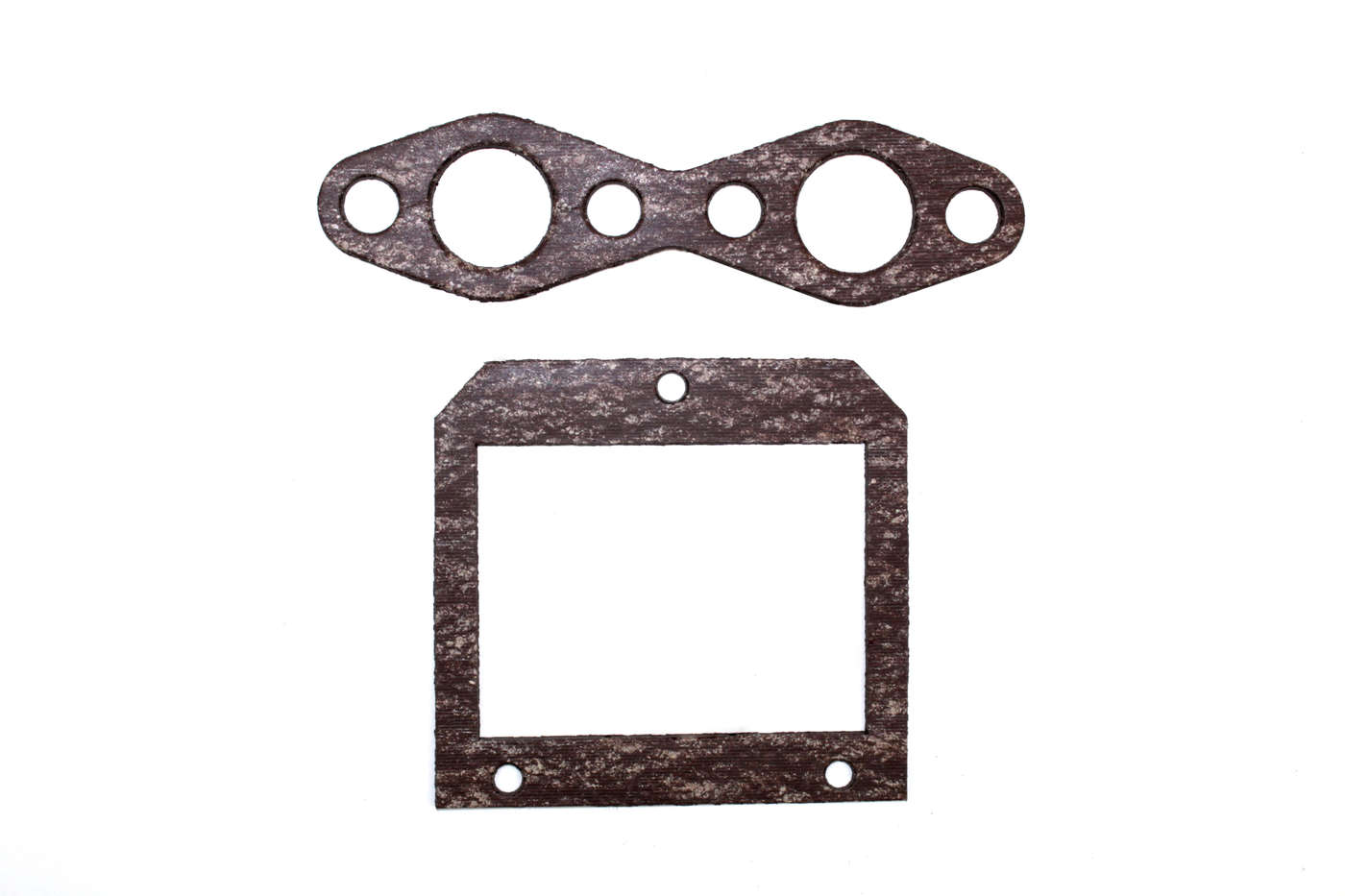

Garlock 9900 Gaskets

Garlock 9900 is a very versatile gasket material, as it can withstand extreme conditions such as high heat & extreme pressure. Composed of graphite fibers with a nitrile binder, this gasket material is ABS Fire Safe Type Approved.








Service Limits



Fibers

Carbon



Binder

Nitrile (NBR)



Colour

Mahogany Red



Temperature range

Max: +1000°F, Min: -100°F,                  Continuous max: +650°F



Thickness

1/64", 1/32", 1/16", 3/32", 1/8"



Sizes

60" x 60" 60" x 120"



Maximum pressure

2000 PSI



Resistant to:

Oil, Gasoline, water, steam



Applications

Chemical processing, hydrocarbon & power generation



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
