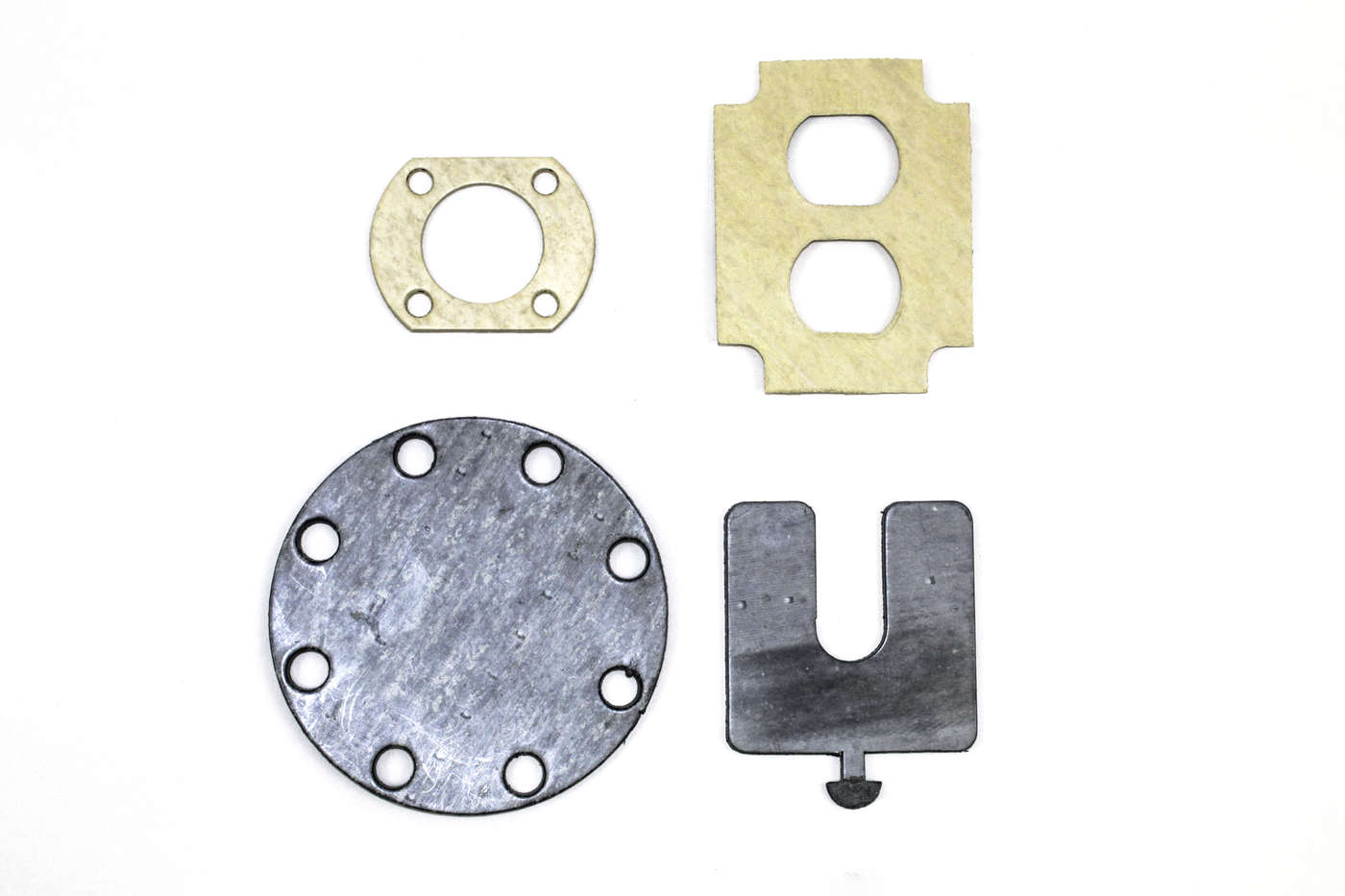

Garlock Bluegard 3200 Gaskets
The BLUE-GARD® Style 3200 gasket provides excellent sealability and improved torque retention. Available in a variety of specifications, it meets MIL-DTL-24696C Type 2 Specifications and can be used in water, saturated steam, and inert gas applications.
Bluegard 3200 is Off-White / Bluegard 3400 is Gray-Black
CLICK HERE TO REQUEST A QUOTE TODAY!
OR SPEAK WITH ONE OF OUR GASKET EXPERTS:
1-905-507-4580
FEATURES AND BENEFITS:
- Excellent sealability
- Improved torque retention
- Drastically lowered emissions levels
- Cuts operational costs through reduced waste, maintenance, stocked inventory, fluid loss, and energy consumption
Check chemical compatibility for Blue Gard 3200 sheet material or cut gaskets
|
Service Limits |
|
|
Fibers |
Aramid |
|
Binder |
SBR Rubber |
|
Colour |
Off-white/Grey-black |
|
Temperature range |
Max: +700°F, Min: -100°F, Continuous max: +400°F |
|
Thickness |
1/64" to 1/8" |
|
Sizes |
60" x 60" , 60" x 120" |
|
Maximum pressure |
1200 PSI |
|
Resistant to: |
Water, saturated steam, inert gases |
|
Applications |
Water & waste-water treatment, gas production & delivery (including inert gases), power generation (steam) |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
*This style is not the preferred choice for steam services, but is successful when adequately compressed. Minimum recommended assembly stress = 4,800 psi. Preferred assembly stress = 6,000-10,000 psi. Gasket thickness of 1/16” strongly preferred. Retorque the bolts/studs prior to pressuring the assembly. For saturated steam above 150 psig or superheated steam, consult Garlock Engineering. To ensure receipt of product branded Mil-G-24696, certification will be required- fees associated based on quantity. Refer to “Military Specifications” in the Gasketing Terms section of the Engineered Gasket Products catalog for order/inquiry requirements.
RELATED CONTENT:
RoHS 3 Compliance Statement - Garlock Compressed Sheet Gasketing - December 2017

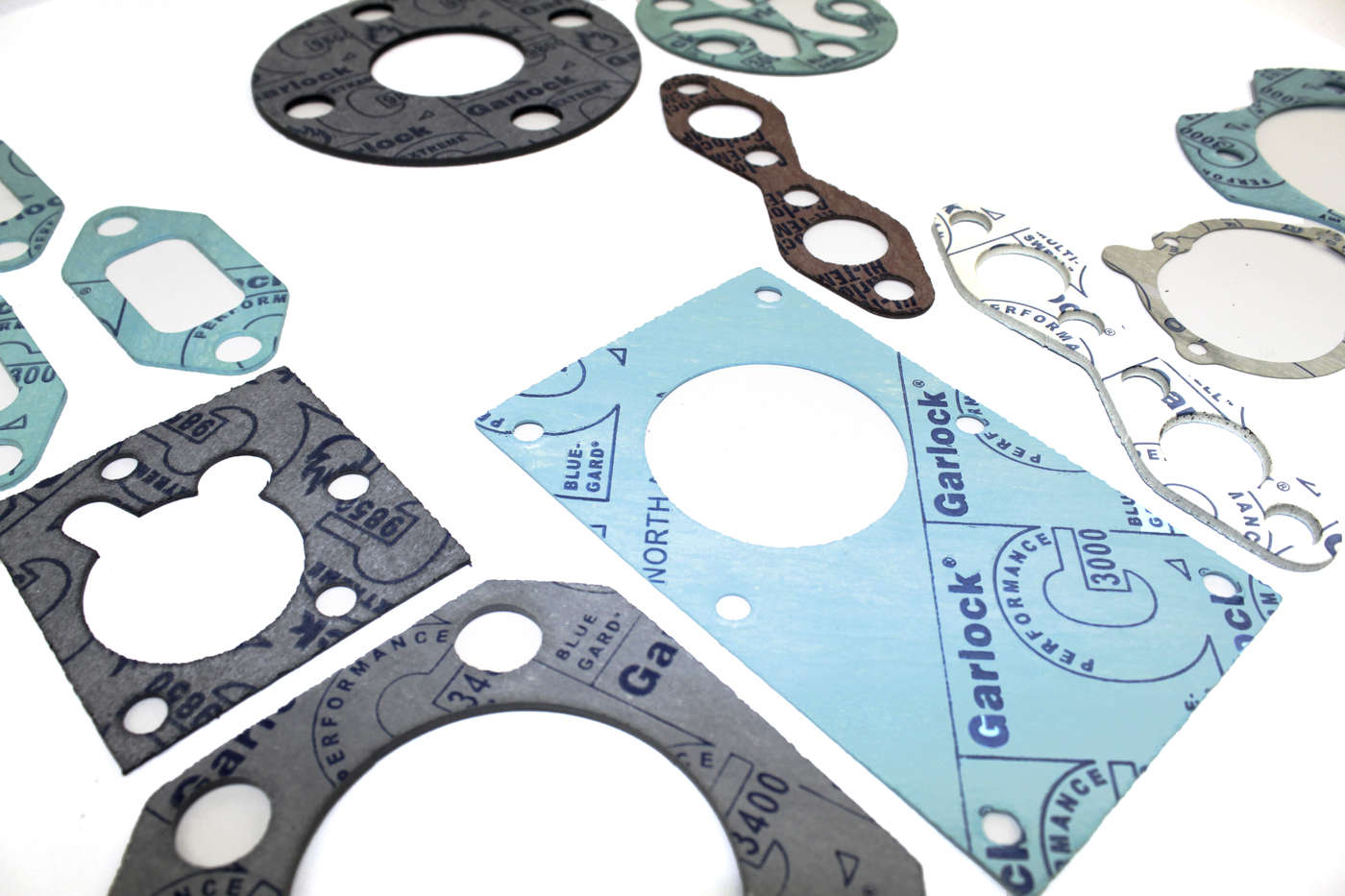

All Custom Gasket supplies custom Blue-gard 3200 gaskets, Blue-gard 3200 ring gaskets, Blue-gard 3200 full face gaskets.
We can also supply Blue-gard 3200 sheet material. We service major cities from our full stocking facility located in Mississauga, Ontario.
