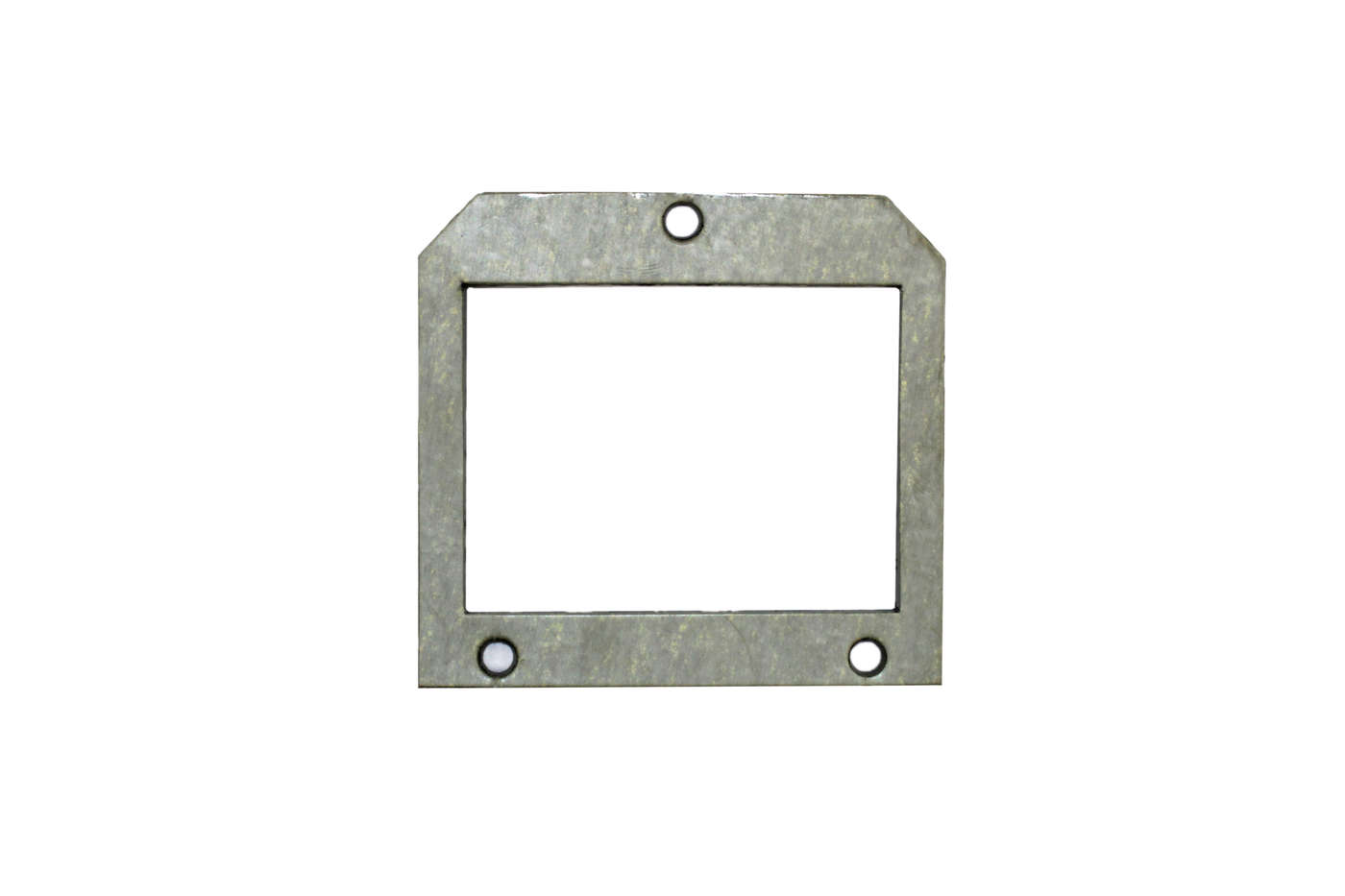

Garlock IFG-5500 Gaskets



Garlock IFG 5500 is a general service gasket material that offersexcellent thermal stability with minimual weight loss, improved torque retention and reduced creep relaxation.

CLICK HERE TO REQUEST A QUOTE TODAY!

OR SPEAK WITH ONE OF OUR GASKET EXPERTS:
1-905-507-4580

FEATURES AND BENEFITS:

  • Tighter seal
  • Excellent thermal stability with minimal weight loss
  • Reduced creep relaxation and improved torque retention provide optimal sealability
  • Temperature resistant
  • Withstand a continuous operating temperature of up to 550° F (290° C), and maximum spike of 800° F (425° C)
  • IFG® 5500 has passed the Garlock Fire Test and is ABS Fire-Safe Type Approved.



Check Chemical Resistance for Garlock IFG 5500 material

Service Limits

Fibers

Inorganic

Binder

Nitrile (NBR)

Colour

Grey

Temperature range

Max: +800°F, Min: -100°F,                  Continuous max: +550°F

Thickness

1/64", 1/32", 1/16", 3/32", 1/8"

Sizes

60" x 60" 60" x 120"

Maximum pressure

1200 PSI

Resistant to:

Water, oils & gas, hydrocarbons, refrigerants & hydrocarbons

Applications

Pumps, piping, petrochemical, chemical process, transformers

Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.



FULL LIST OF GARLOCK MATERIAL

RELATED CONTENT:

RoHS 3 Compliance Statement - Garlock Compressed Sheet Gasketing - December 2017

Garlock Technical Manual

Garlock Performance Grade Compressed Gasketing


Go to Top of Page

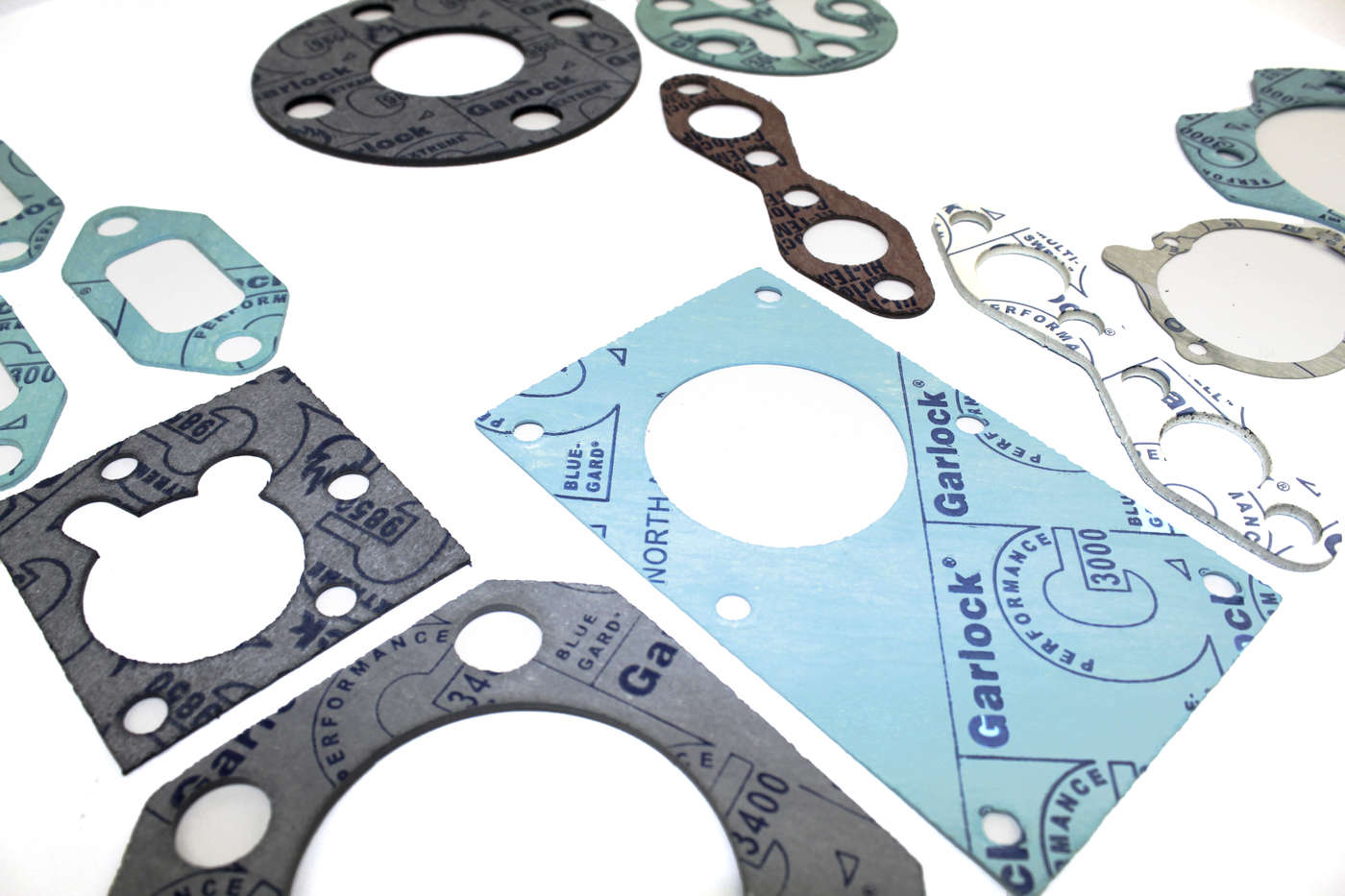

All Custom Gasket supplies custom Garlock IFG 5500 gaskets, Garlock IFG 5500 ring gaskets, Garlock IFG 5500 full face gaskets.

We can also supply Garlock IFG 5500 sheet material.  We service major cities from our full stocking facility located in Toronto | Mississauga, Ontario.
