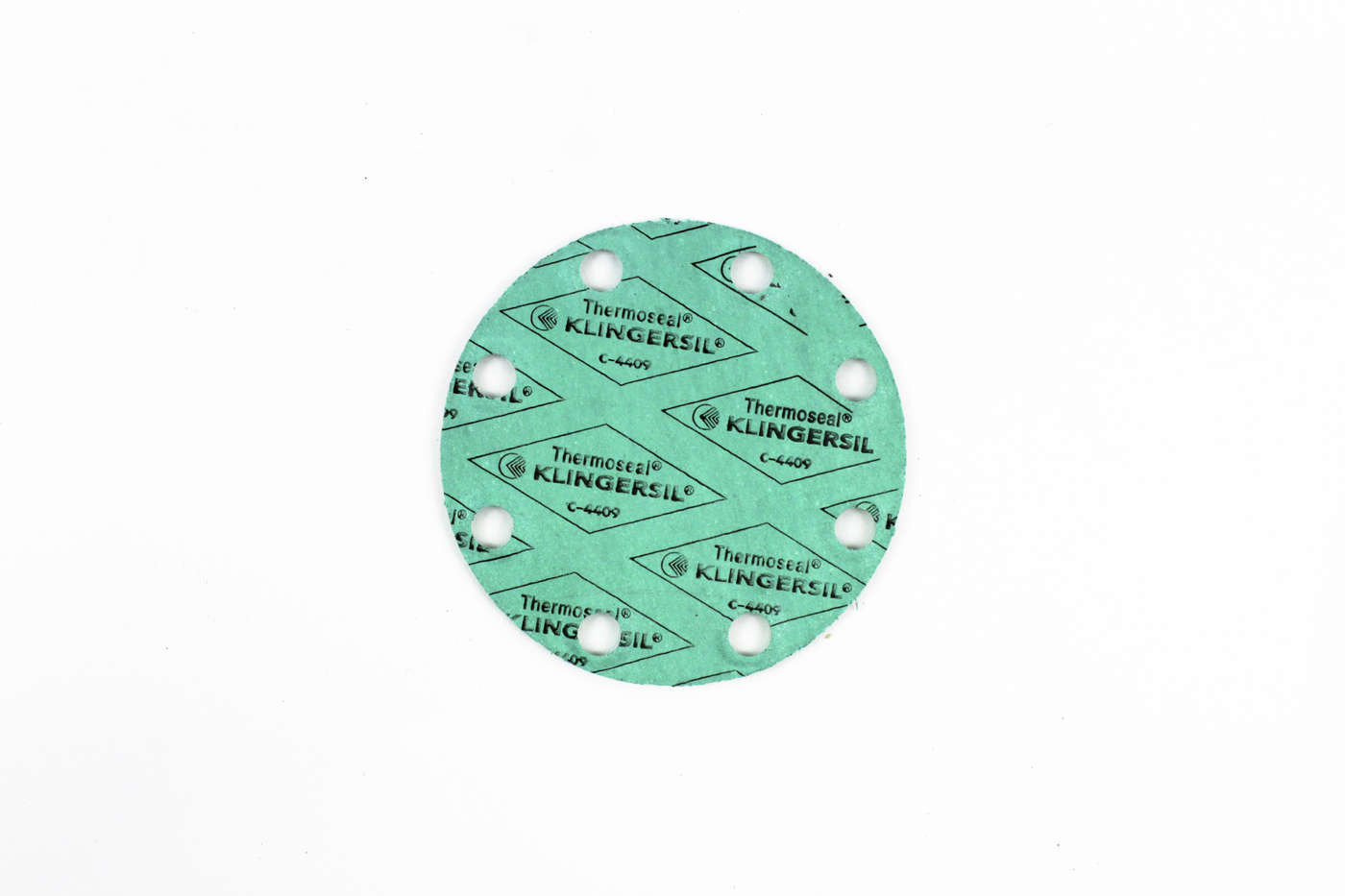

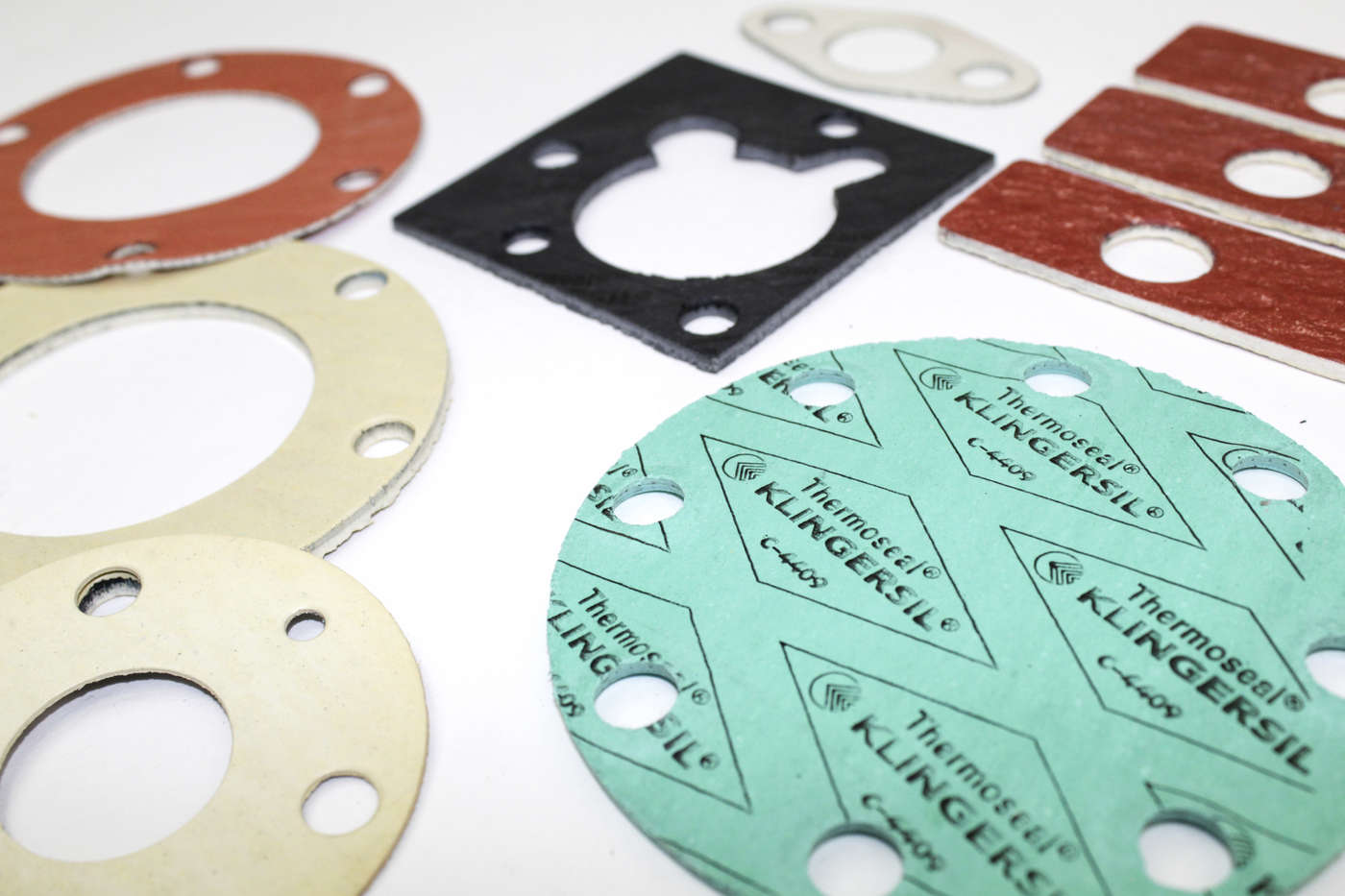

Klingersil C-4409
|
Klingersil C-4409 is a gasket material that is excellent for use for high thermal applications. Its expanded metal makes it suitable for high loads. It is chemically resistant to oils, steam, liquid and gasous chemicals. |
||
|
Service Limits |
||
|
Fibers |
Carbon |
|
|
Binder |
NBR |
|
|
Colour |
Green |
|
|
Temperature range |
Max: +850°F |
|
|
Thickness |
1/16”, 1/8" |
|
|
Sizes |
60” x 60” |
|
|
Maximum pressure |
2500 PSI |
|
|
Resistant to: |
High temperature, stress, pressure, steam & gas |
|
|
Applications |
Pumps, oil & gas industries, pulp & paper, steam/liquid high pressure applications |
|
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
