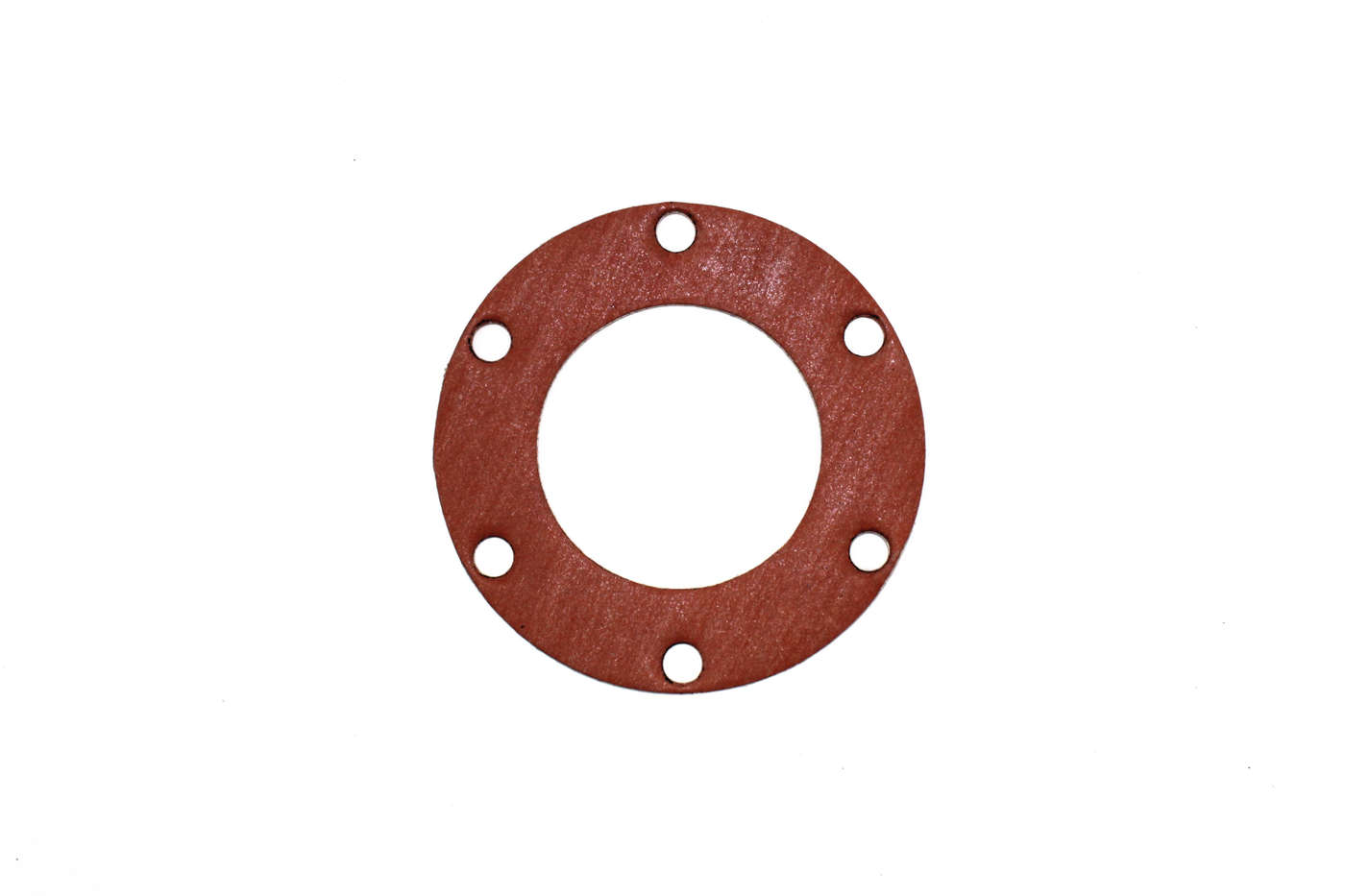

Klingersil C-4439
Klingersil C-4439 is a high performance compressed gasket material with a galvanized carbon steel insert. It is suitable for sealing liquids in high stress and high temperature applications up to 775°F and for sealing steam and gases at temperatures up to 500°F.
|
Service Limits |
|
|
Fibers |
Fiberglass, Aramid & Inorganic |
|
Binder |
Nitrile |
|
Colour |
Red |
|
Temperature range |
Max: +716°F, Continuous max: +490°F |
|
Thickness |
1/16”, 1/8" |
|
Sizes |
60” x 60” |
|
Maximum pressure |
1500 |
|
Resistant to: |
Oils, fuels, caustics, steam & hydrocarbons |
|
Applications |
Compressors, Pipe Flanges, Manways, Pumps & valves |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
