Novatec 925

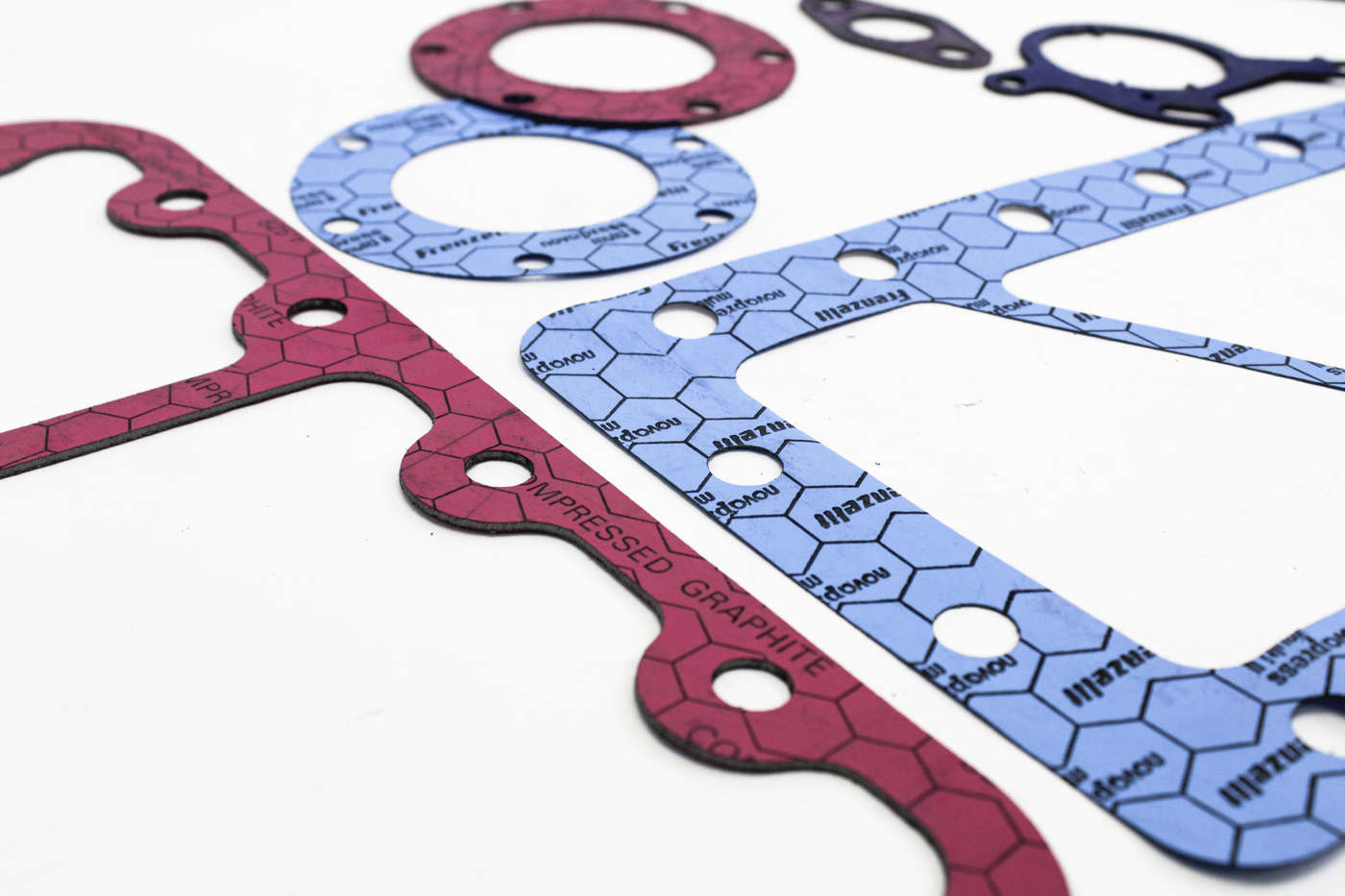

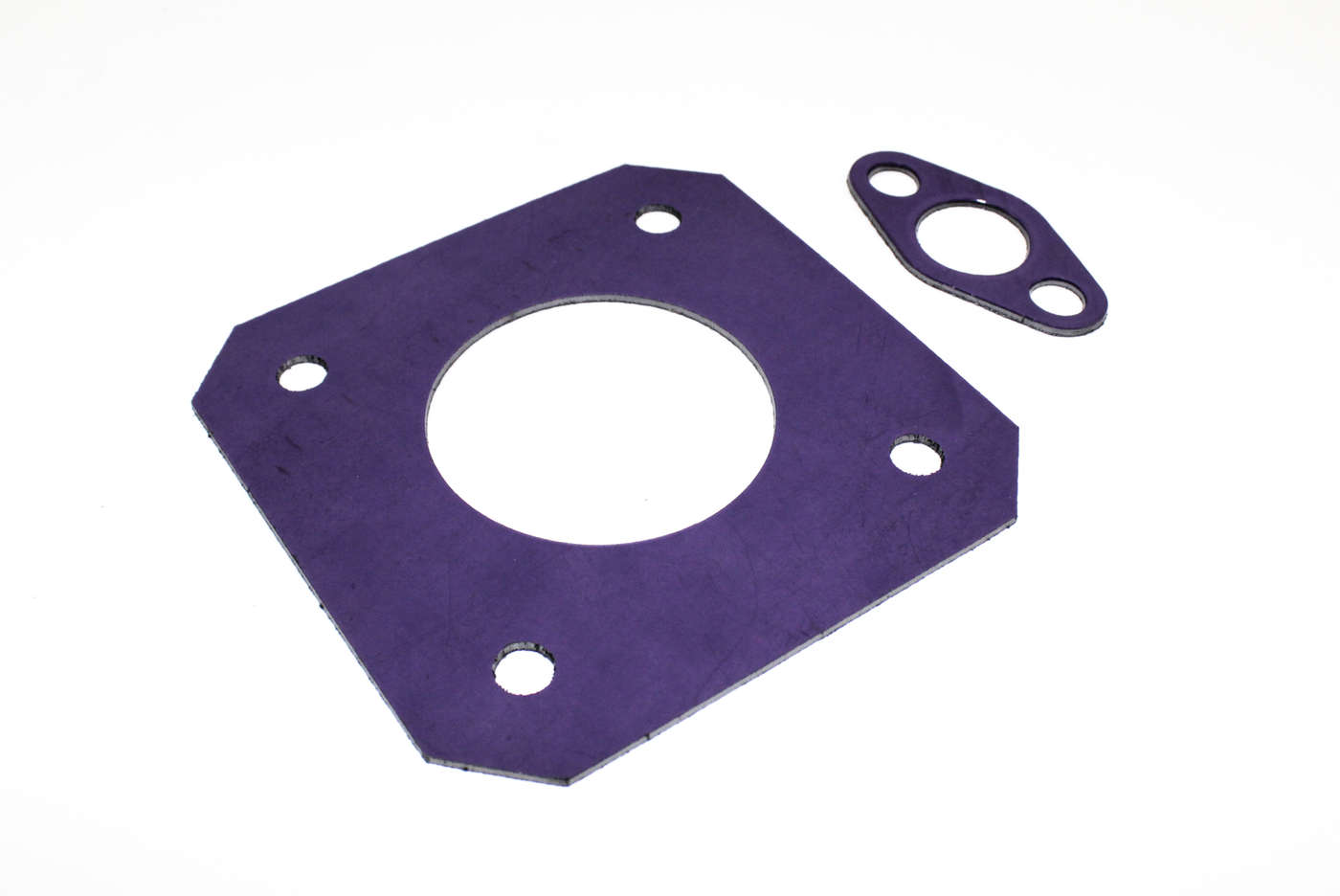

Novatec 925 engineered graphite gasket material provides a desired balance of elevated temperature resistance and chemical compatibility. It is great for use in narrow flange width applications. Novatex 925 is Frenzelit's high pressure compressed gasket sheet that contains 75% pure graphite. Often used to replace flexible graphite.
|
Service Limits |
|
|
Fibers |
Graphite with Kevlar® |
|
Binder |
Nitrile (NBR) |
|
Colour |
Grape |
|
Temperature range |
Max: +925°F, Continuous max: +572°F |
|
Thickness |
1/16”, 1/8" |
|
Sizes |
78" x 59" |
|
Maximum pressure |
1500 PSI |
|
Resistant to: |
Oil & greases, acids & alkalis, solvents, refrigerants, water, steam |
|
Applications |
Extreme applications in general industry, oil-filter support, pump casing, heat exchangers, lids, vessels |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
