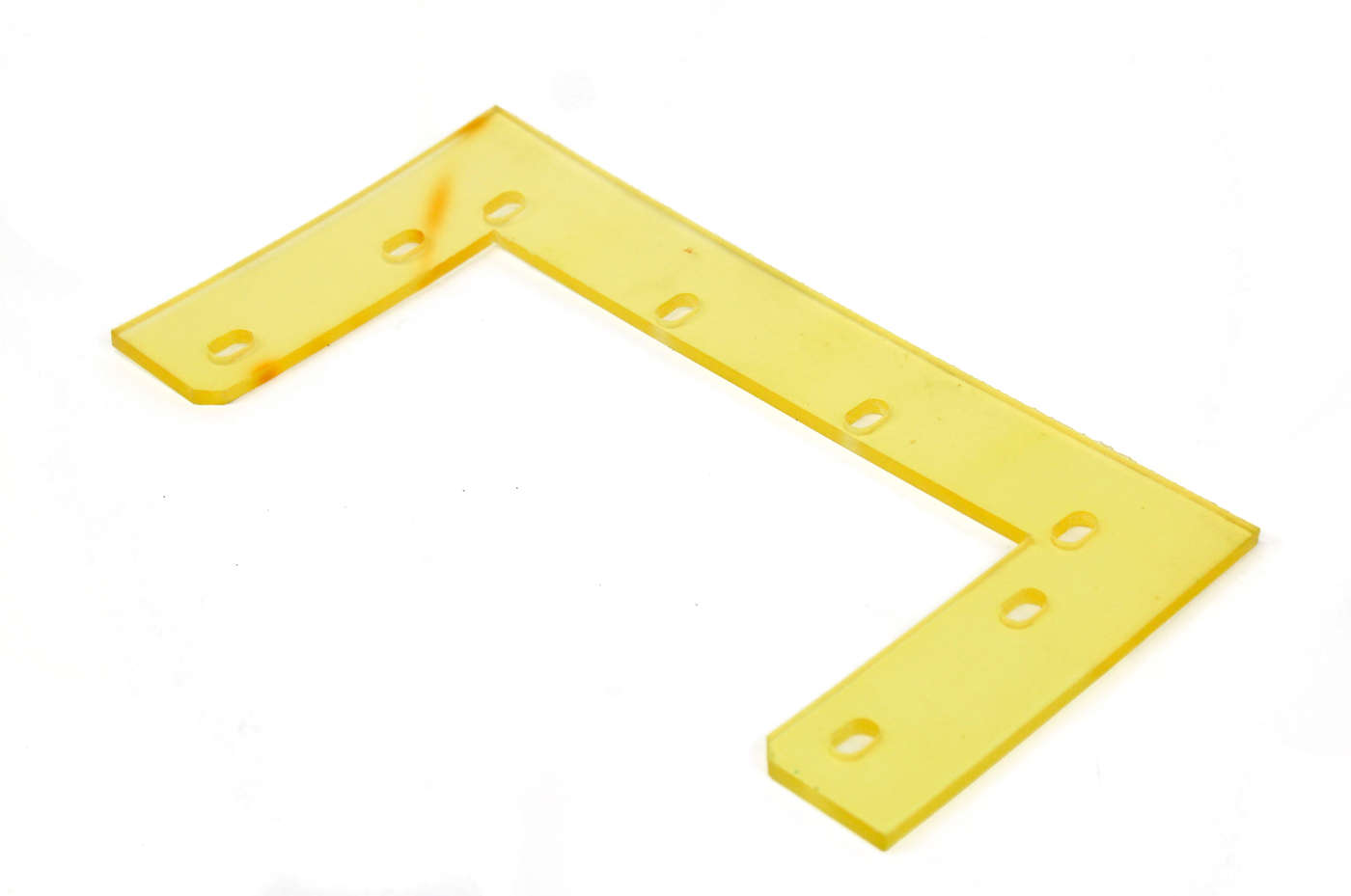

Polyurethane (PDI)

Polyurethane is a polymer composed of organic units joined by carbamate links. It has very high abrasion qualities. It can handle high impact applications, cuts, cracking, oil, grease, chemicals and it has an extremely high tensile strength which means that it is very durable.  Virtually immune to ozone and oxygen. Applications include electrical equipment, machine mounts, vibration damping and shock absorption.



Service Limits

Type

Value

Polymer

Polyurethane

ASTM Designation

PDI

Colour

Tan

Durometer

60A, 70A, 80A, 90A (Custom up to 70D)

Temperature Range

-25°F to +250°F

Elongation

400-700%

Tensile Strength

2300-5000 PSI

Finish

Cast Sheets

Widths

12", 24", 48"

Thickness

1/8", 1/4"

Pressure Sensitive Adhesive (PSA)

Contact us for details

Grades

Standard, Precision, FDA

Available Forms

Rolls, Sheets, Cut gaskets, Extusions, Molded parts



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
