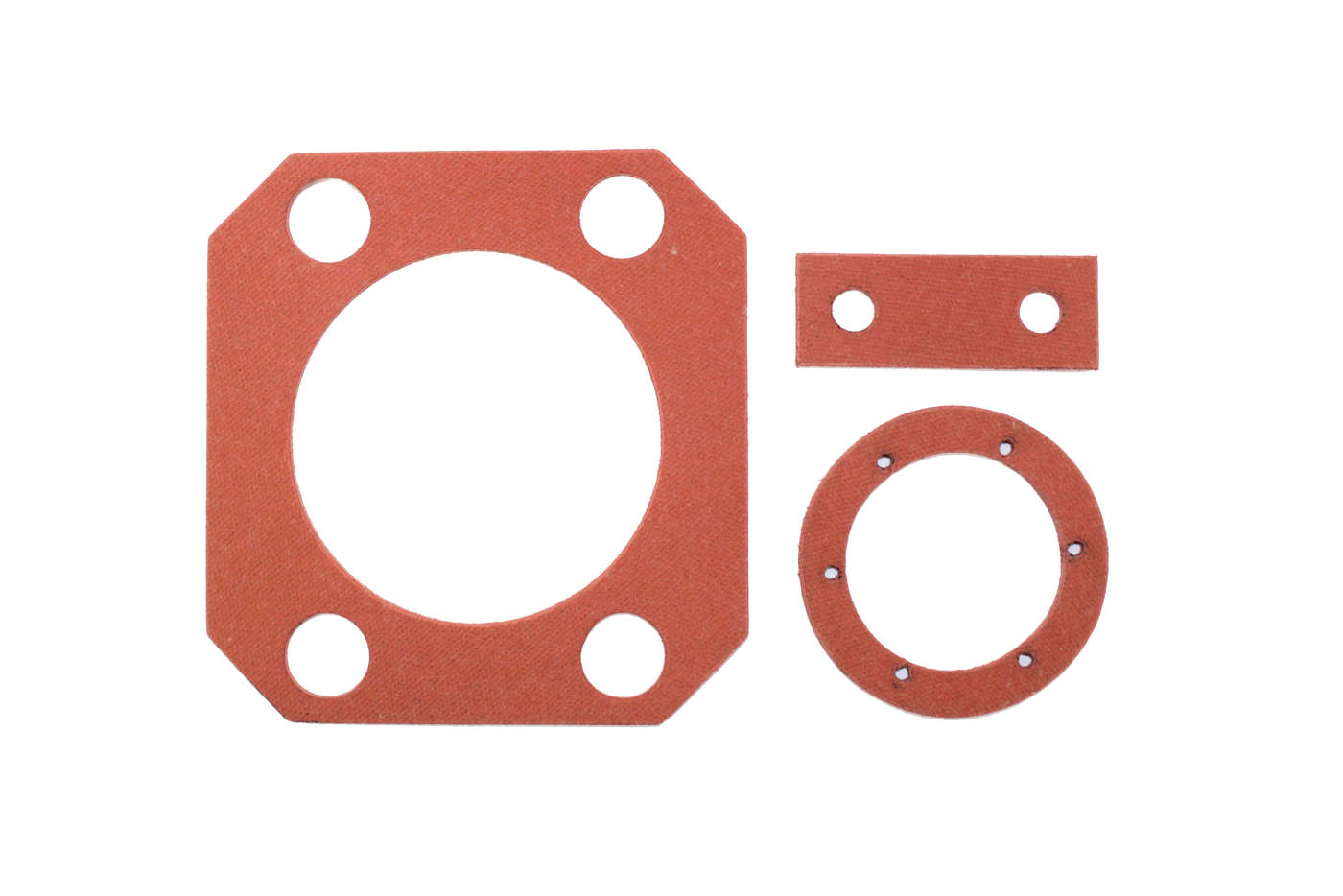

Red Rubber (SBR)
Red Rubber is a commercial blend of Styrene Butadiene for industrial gaskets. It has good physical properties making it an economical gasket material. This gasket material conforms easily to uneven flange surfaces, has good abrasion resistance, excellent impact strength, very good resilience and a high tensile strength. Not suited for use with oils, fuels, solvents or hydraulic fluids.
|
Service Limits |
|
|
Polymer |
Styrene Butadiene |
|
ASTM Designation |
SBR |
|
Colour |
Red |
|
Durometer |
80 |
|
Temperature Range |
-20°F to +180°F |
|
Elongation |
400% |
|
Tensile Strength |
500-1200 PSI |
|
Finish |
Plate, Fabric |
|
Widths |
36", 48" |
|
Thickness |
1/16", 3/32", 1/8", 1/4" |
|
Pressure Sensitive Adhesive (PSA) |
Available upon request |
|
Grades |
Commercial, Grade D 1330-85 Grade 1 or 2 |
|
Available Forms |
Rolls, Sheets, Stripping, Cut gaskets, Extrusion, Molded parts |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
