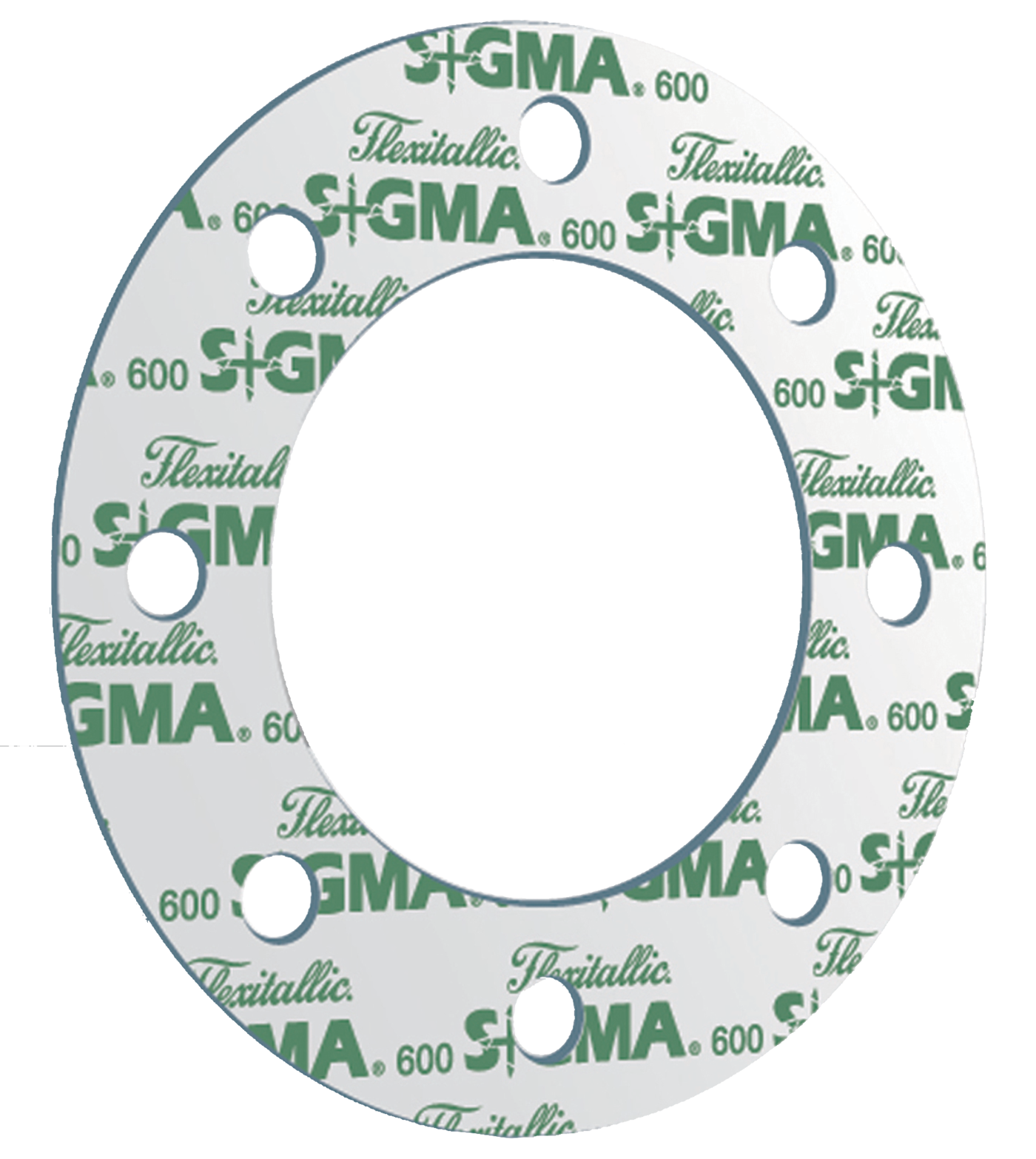

Sigma 600
Sigma 600 has the most compressibility out of the Sigma series, for ultra-bolt loads for plastic and glass lined equipment. Pigment and filler free, Sigma 600 is suitable for contamination sensitive applications.
|
Service Limits |
|
|
Filler |
PTFE |
|
Colour |
White |
|
Temperature range |
Max: +500F |
|
Thickness |
1/32" , 1/16" , 5/64", 1/8" |
|
Sizes |
60" x 60" |
|
Maximum pressure |
1088 - 1235 depending on thickness |
|
Resistant to |
Universal use, Ultra low loads, plastic & glass lined flanges |
|
Available Forms: |
Sheet, Cut Gasket |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
