Silicone Rubber

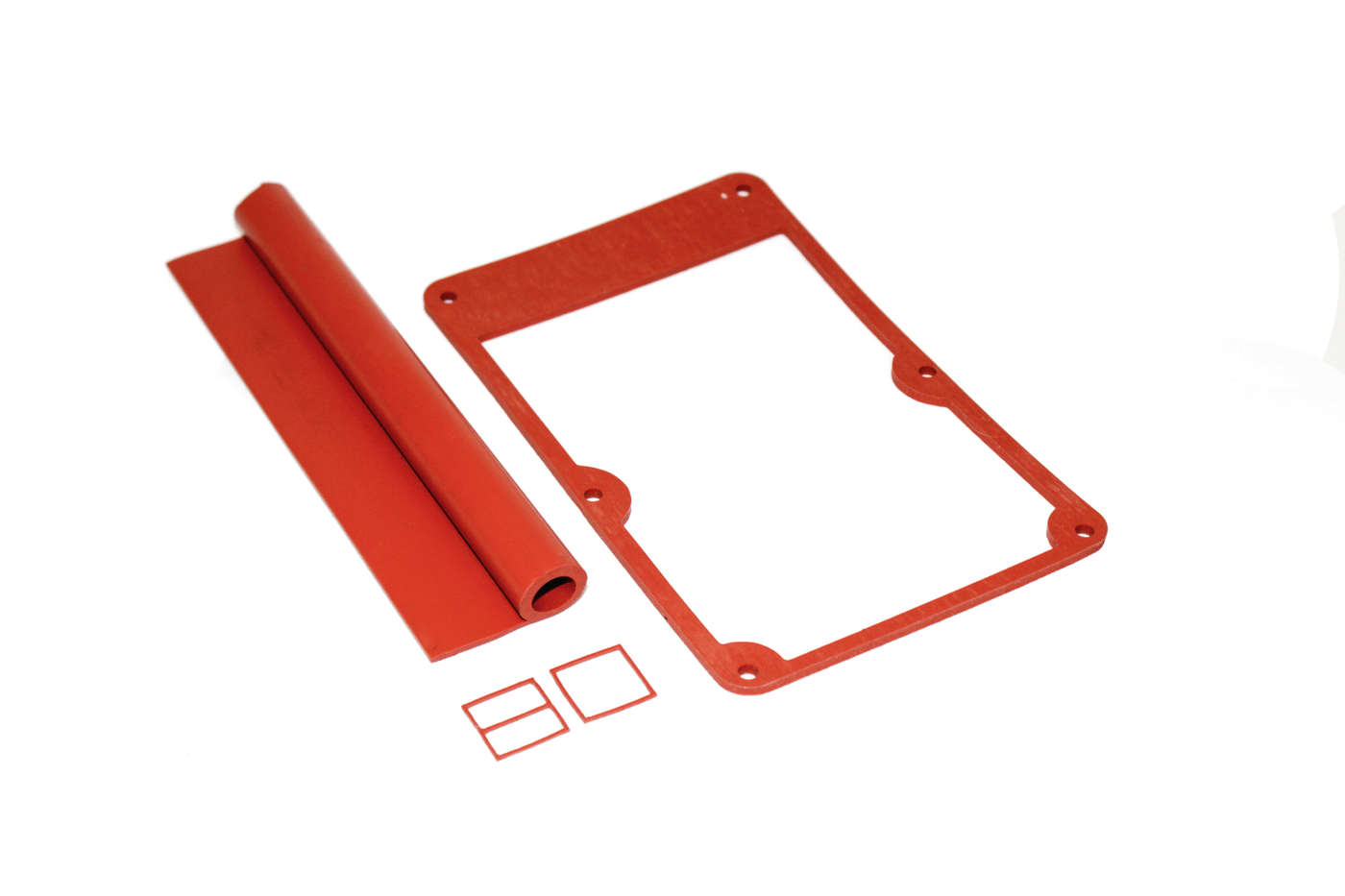

Silicone Rubber is a gasket material that is derived from inorganic silica (sand). Silicone Rubber has excellent weathering properties and handles both hot and cold temperature extremes; resists ozone and oxygen attacks. Silicone Rubber has poor resistance to oils, fuels, and hydrocarbons. Fair performance when exposed to acids, alkalis and solvents. It is odorless and tasteless, it is ideal for certain surgical and food processing applications.
|
Service Limits |
|
|
Polymer |
Silicone |
|
ASTM Designation |
SI |
|
Colour |
Red-Orange, Grey, White, Black, Translucent |
|
Durometer |
30, 40, 50, 60, 70, 80 |
|
Temperature Range |
-94°F to +392°F |
|
Elongation |
300% |
|
Tensile Strength |
1100 PSI |
|
Finish |
Plate |
|
Widths |
36", 48" |
|
Thickness |
1/32”, 1/16”, 3/32”, 1/8”, 3/16”, 1/4", 3/8”, 1/2" |
|
Pressure Sensitive Adhesive (PSA) |
Available upon request |
|
Grades |
Commercial, FDA, Fiberglass reinforced, Electrically conductive |
|
Available Forms |
Sheet, Rolls, Stripping, Cut gaskets, Extrusions, Molded parts |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
